Silicone Rubber Keypad with Plastic Key Cover

  • SRK-PR1

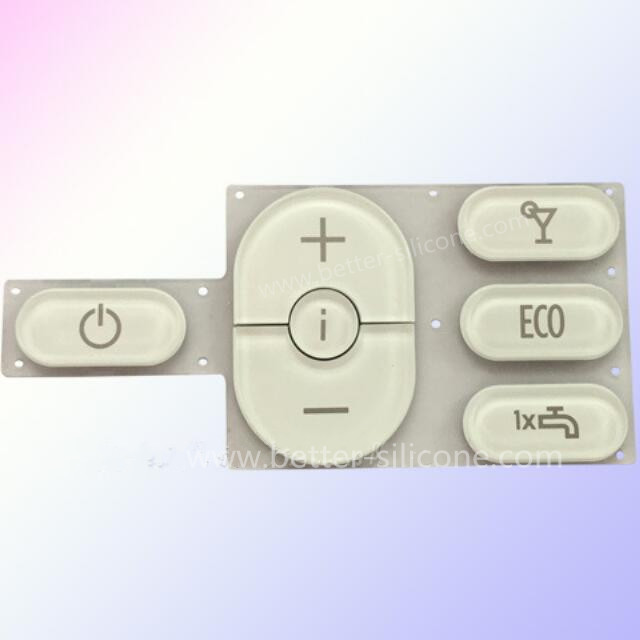

Plastic Rubber Keypad

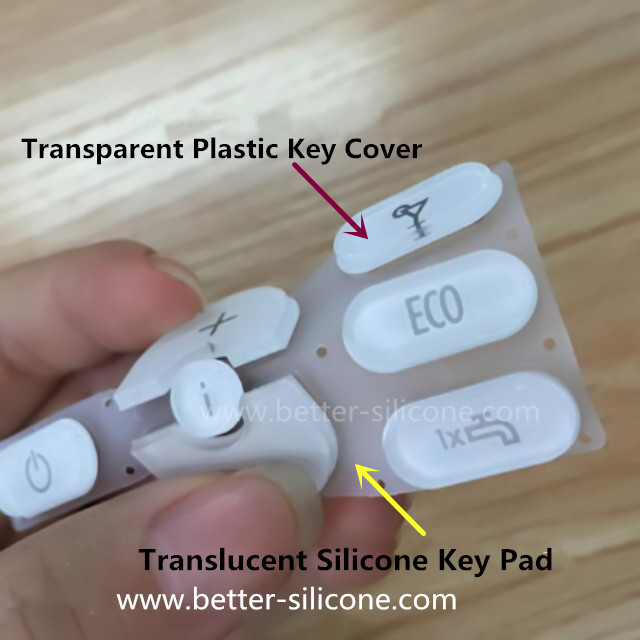

Plastic+Rubber Keypad

Plastic Rubber Keypad, which also can P+R Keypad or Silicone Rubber Keypad with Plastic Cover Cap.
This kind keypads combine the benefits of plastic keycap with the elastomeric and sealing feature of silicone rubber key pads by glue.
The interface support many kinds of colors, textures, graphic pattern, which can enhance the aesthetic and backlight effects of products.

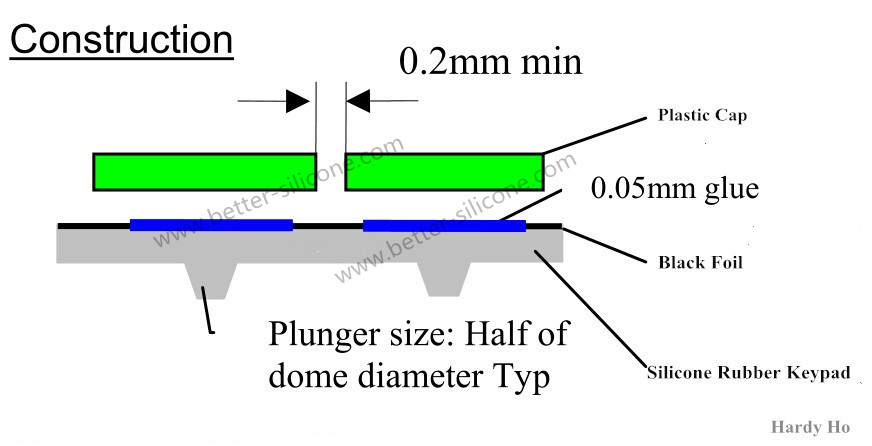

Plastic Silicone Keypad

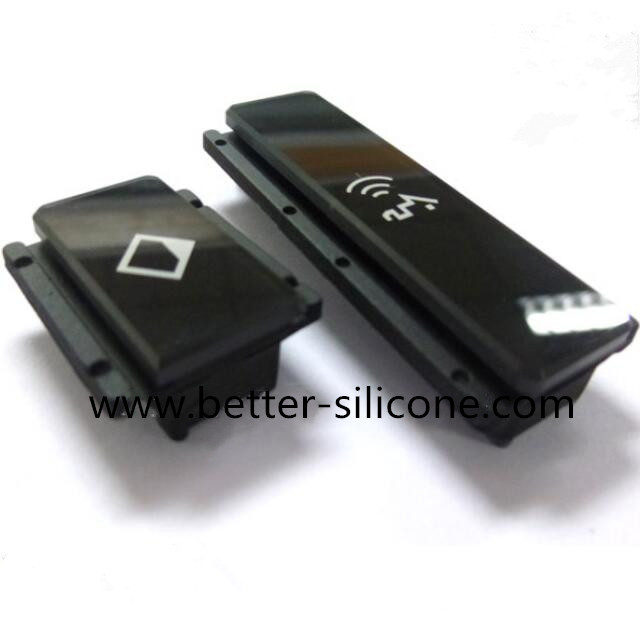

Plastic Key Cover with Silicone Keypad

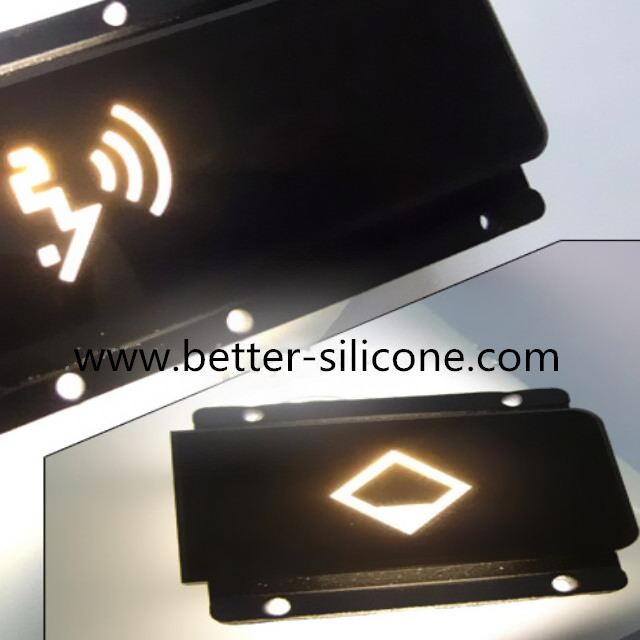

Backlight Key Cover

Plastic Rubber Key Cap Information:

1.) Plastic Key Cover Materials: PC, PMMA (acrylic), ABS, ABS+PC etc.
2.) Plastic Key Cover Usage: Light Guide, Textures, Metallic Color Effects etc.
3.) Keypad Height >0.8mm.
4.) Sharp Corner Radius 0.2mm
5.)  Key Cover Graphics with or without backlighting (Back plastic keypad can choose silk screen printing).
6.) Abrasion Resistance Coating and UV Coating.

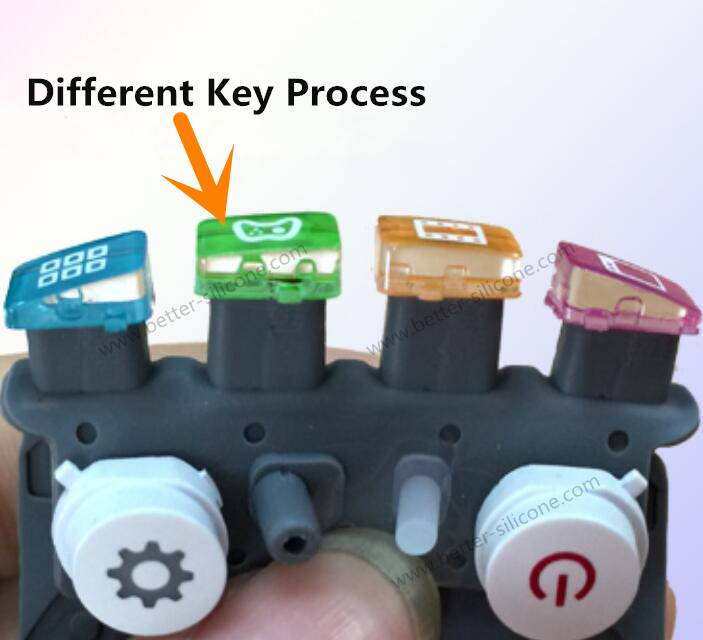

Plastic Keycap Silicone Keypad

Silicone Rubber Keypad with Plastic Cap Production Process:
1. Keypads Forming and Plastic Keycap Injection Forming.
Plastic Key Cover
2. Silk Screen Printing, Spray Coating, Laser Etching, Back-lighted.
Plastic Key Cap Silicone Keypad

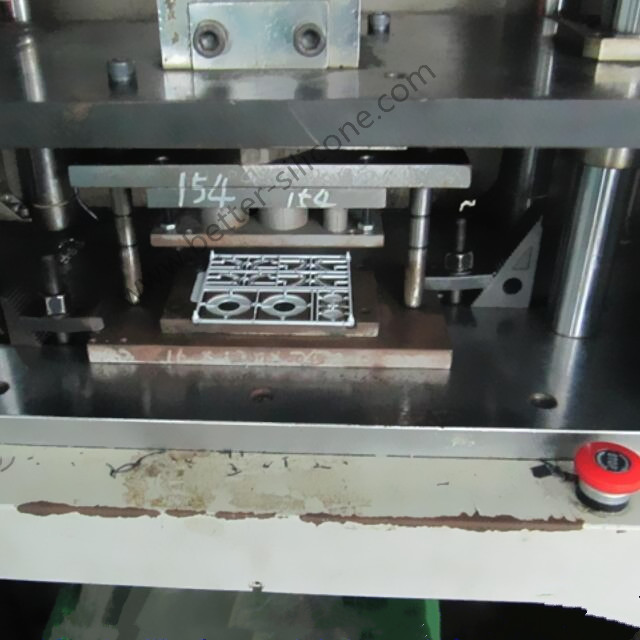

3. Trimming Die for Plastic Keycap, and Silicone Keypad Deburring.

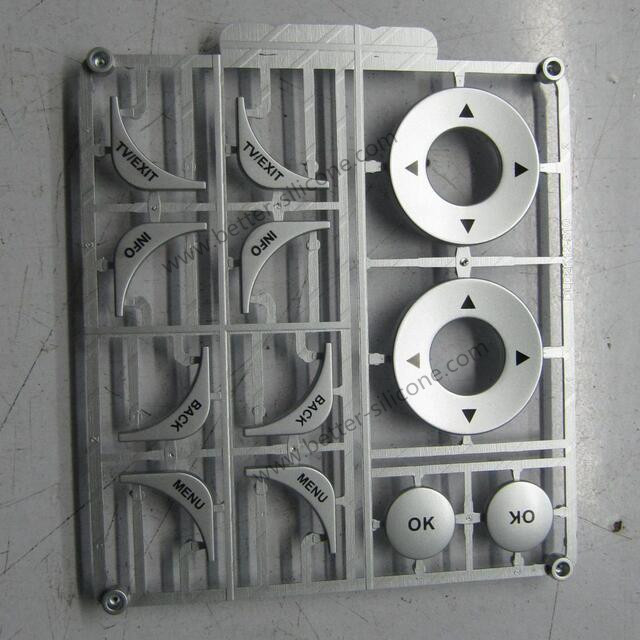

Plastic Key Cap
Plastic Keycap Silicone Keypad

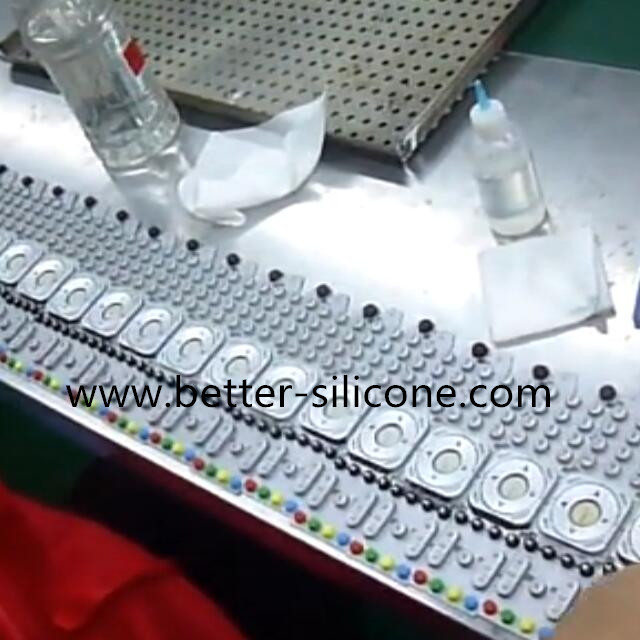

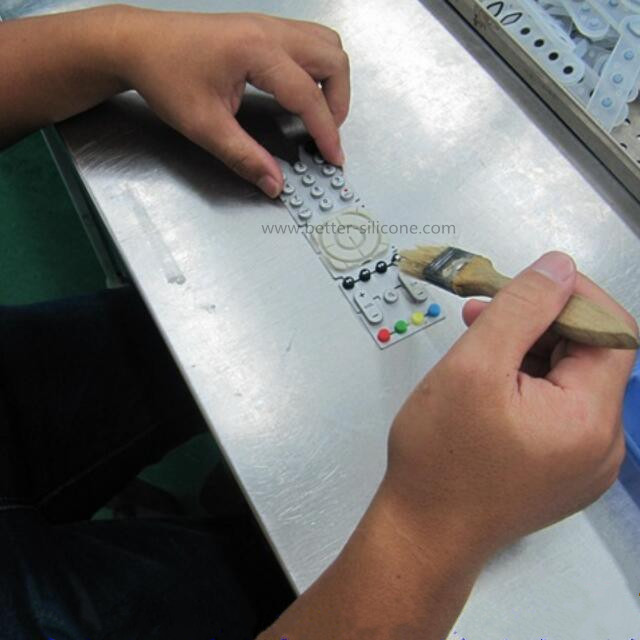

   4. Assembly keycap and Keypads by Glue.
Plastic Rubber Silicone Keypad
Plastic Key Cap with Silicone Key pad
Plastic Silicone Keypad

5. Baking Process or Compress Tooling for combination.

Plastic Rubber Silicone Keypad Appliance: Cell Phone, POS terminal, Calculator, Music Device etc.

Plastic Rubber Keypad Advantages
1.) Good aesthetic and backlight effects.
2.) Good Touch Feeling, Anti-dust.
3.) Cost effective to large quantities.
3.) Long lifespan keypad


Plastic Rubber Disadvantage.
1.) High injection mold-making cost: If choose PC/PMMA materials and up to light guide effects, that need choose good mold core steels.
2.) High Keycap Demands: No flowing mark, no texturing and up to light guide effects. That need good injection machines and injection standard parts.
3.) Unsuitable to low quantities.

Xiamen Better Silicone Co.,Ltd Advantage:
1. Competitive Price: Origin Manufacturer.
2. Technology Advantage
Mold tools making since 1998.
3. Dust-free production environment 1 LSR injection Machines, 3 Sets Rubber Compressive Machines, and Assembly Line in 100,000 rating Dust-free Plants.
Fully production equipment and Testor
Five Plants: Mold-Making, Silicone Rubber Compressive, Plastic Injection, LSR Injection, and Assembly Plants.
Mold-Making Equipment: CNC, Mirror EDM, EDM, Slow-speed Wire Cut M/C and other  auxiliary equipment etc.
Production Equipment: 15 Sets Rubber Compressive Machines, 8 Sets Haitian Plastic Injection Machines, 2 Sets LSR Injection Machines.
Test Equipment: 3D Projectors, Sealing Testor, Elasticity Measurement, Durometer etc.
4. Production and Test strictly according to ISO9001.
5. Experienced staff:
6. Fast-reaction Organization: Such as, One morning, Our Customer tell two precision rubber parts for smart cell phone need to revived, and ask we to send revived rubber samples to them at that day. At last, we made it at that day.
