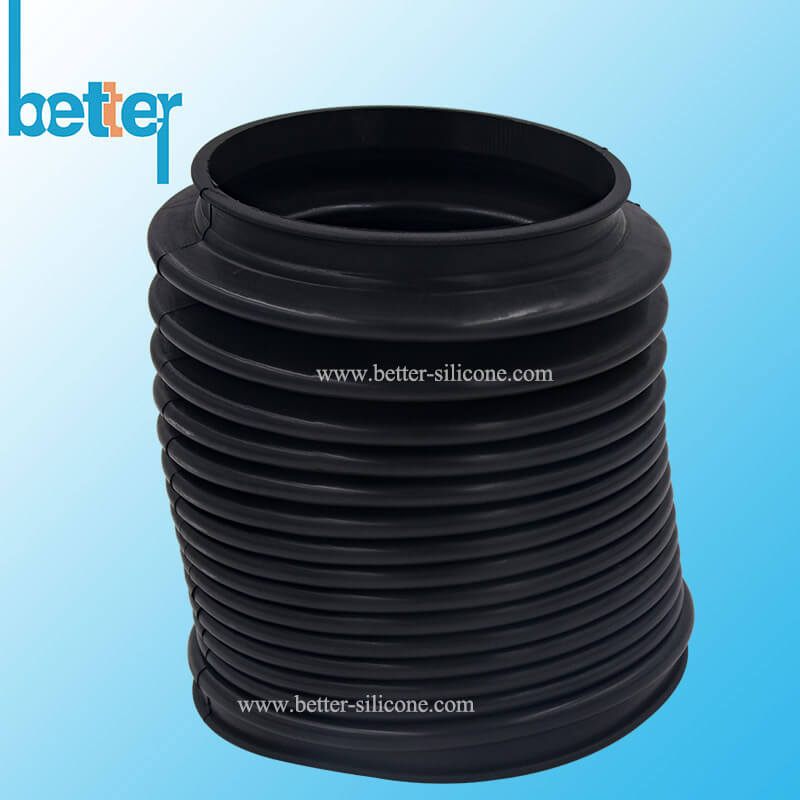

Chloroprene Rubber Bellows

Chloroprene Rubber Bellow, also call Neoprene Rubber Bellows & CR Rubber Bellows, which mainly used as a protective cover expansion joints & boots to maintain inner equipment preformance, especially, good physical property, oil-proof performance, weather resistance, ozone resistance and aging resistance.
Quantity:
  • BT-RB

Chloroprene Rubber Bellows

Chloroprene Rubber Bellow, also call Neoprene Rubber Bellows & CR Rubber Bellows, which mainly used as a protective cover expansion joints & boots to maintain inner equipment preformance, especially, good physical property, oil-proof performance, weather resistance, ozone resistance and aging resistance.
Elastomeric Chloroprene Rubber Bellows mainly made by silicone rubber compression molding, extrusion moulding or rubber injection moulding.

Chloroprene Rubber Bellows
Neoprene & Chloroprene Rubber Bellows Advantage:

Chloroprene Rubber Bellows have good Oil-proof: Oil Resistance ranks only second to that of NBR rubber bellow and FKM rubber bellows

Neoprene & Chloroprene Rubber Bellows have Good Physical Property: Have a good tensile strength, elongation crystalline and adhesion

Neoprene Rubber Bellows have a certain Heat & Flame Resistance: Chloroprene Rubber heat resistance is equal to that of NBR materials


Neoprene & Chloroprene Bellows good weather resistance, ozone resistance and aging resistance, is rank only second to EPR Gasket and II R ( Isobutylene Isoprene Rubber ). Acid & alkali resistance and anti chemical: Norganic acid and alkali resistance is good
Chloroprene Bellows

Chloroprene Rubber Bellows working temperature
1. 80℃ ï½ž 100℃ for a long time
2. 120℃ ï½ž150℃ for a short period
3. Decomposing temperature is 230℃~260℃


Neoprene & Chloroprene Rubber Bellows Disadvantage:
Neoprene Bellows cold tolerance and insulation are poor.
Neoprene Rubber  Bellows bad storage stability easily appearing self-vulcanization phenomenon and it tend to harden as Mooney Viscosity increases.

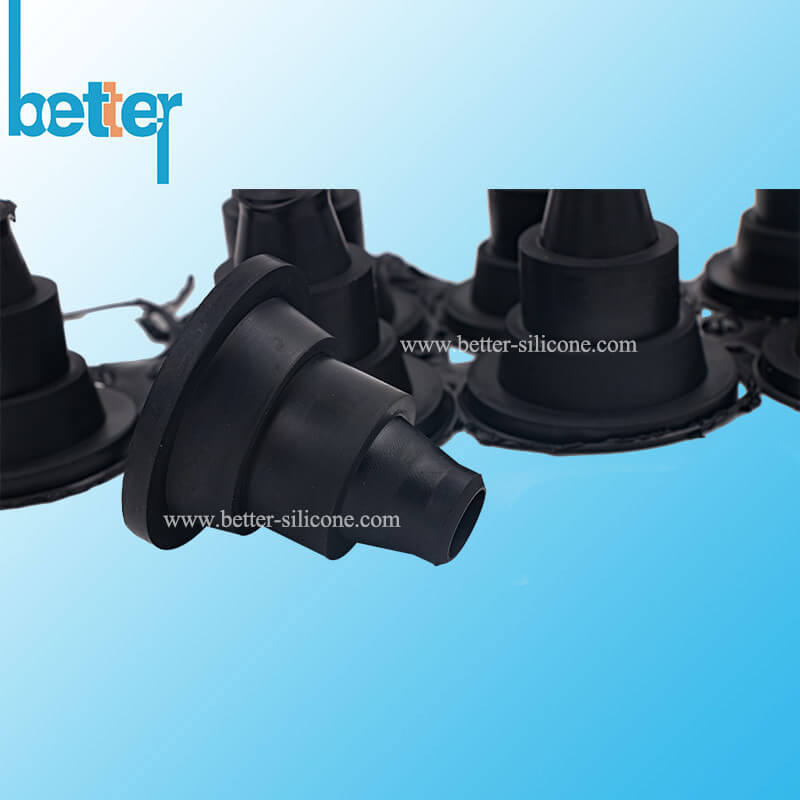

Neoprene Rubber Bellows

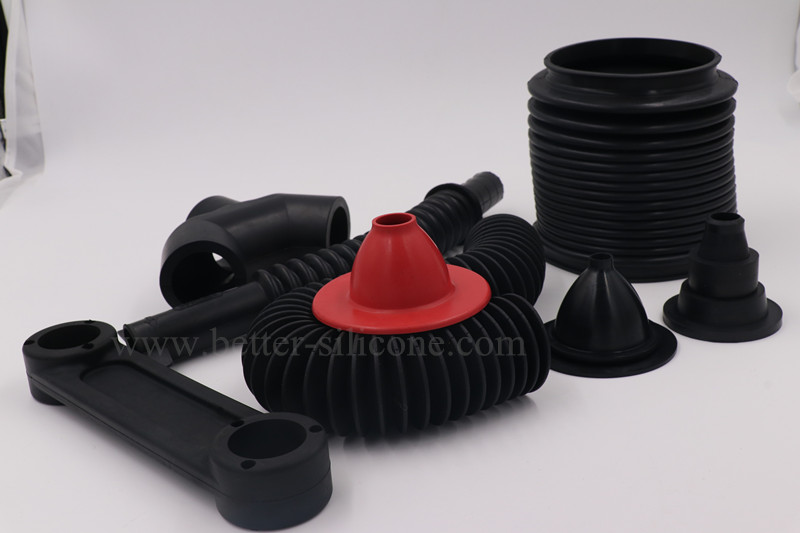

Chloroprene Rubber Bellows Main Struction and Shape

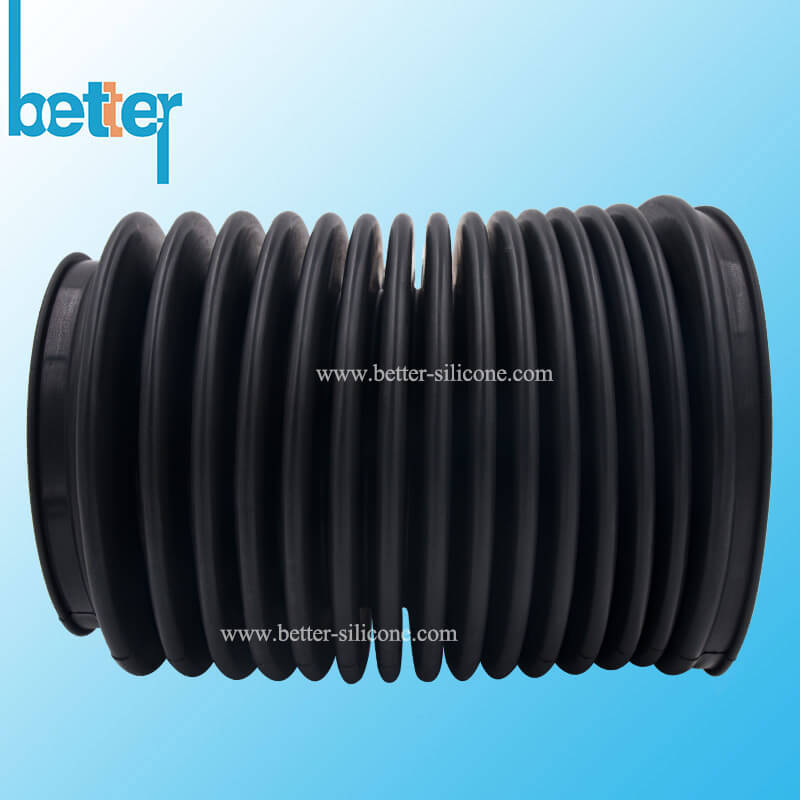

Straight Convolution Neoprene
Rubber Bellows
Tapered CR Rubber Bellows
Metal + CR Rubber Overmolded Bellows
Chloroprene Rubber Bellows with Clamping, Holes & Locks

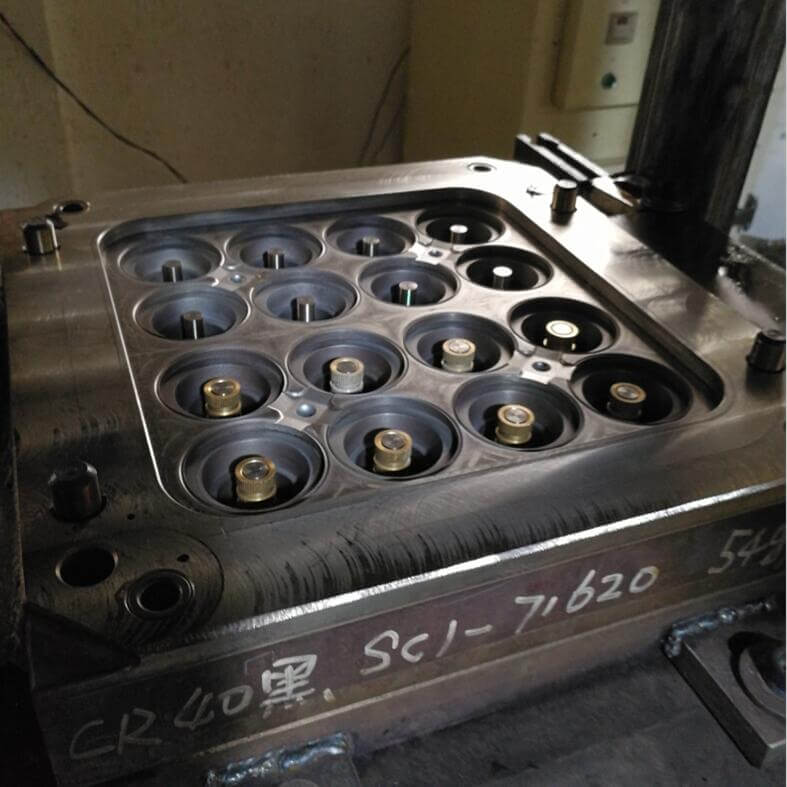

Chloroprene Rubber Bellows Mold Tooling
Chloroprene Rubber Bellows
Chloroprene Bellows
Rubber Bellows Main Materials


Material Abbreviation Temperature Range Aging Weathering Ozone Resistance to Oil & Grease Water Swell Resistance  Flex-Fatigue Economy of Material Material Notes
Chloroprene(Neoprene) CR -40F to 250F Good Good Average Very Good Good exposure to refrigerants,can be compounded for FDA applications
Nitrile NBR -22F to 212F Poor Very Good Good Good Very Good Automotive Applications, Good Oil Proof
Ethylence-Propylene EPDM,EPM -60F to 300F Very Good Poor Very Good Good Very Good Outside Applications, Good Weather Proof
Silicone VMQ -75F to 450F Very Good Average Very Good Very Good Average Medical Applications
Fluo Rubber FKM 5F   to 390F Very Good Very Good Good Average Poor Rubber King, Widely Applications
Chloroprene Rubber Bellows
