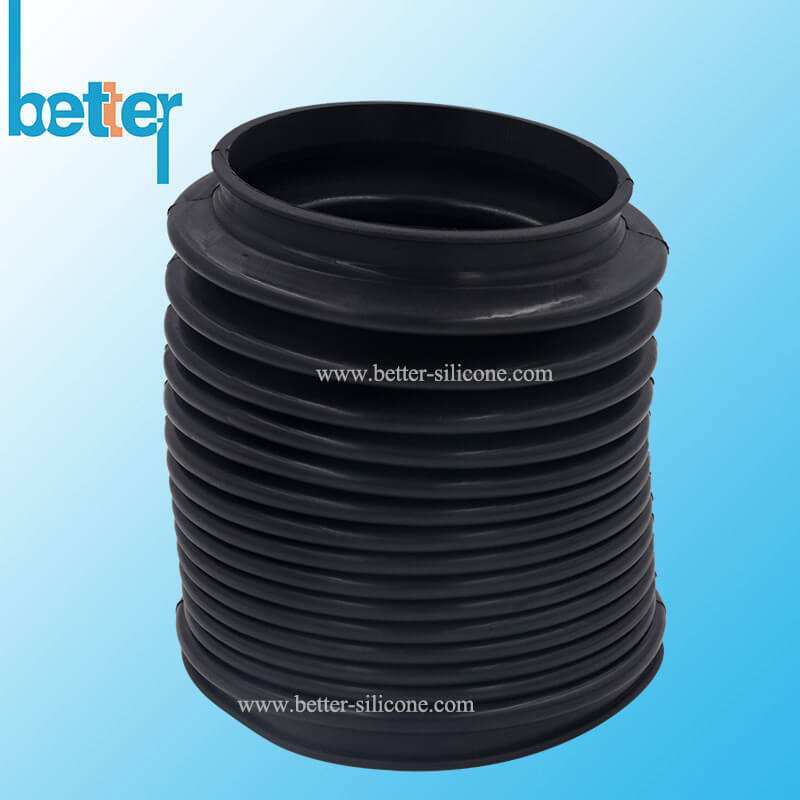

Buna n Expansion Bellows

Buna n Expansion Bellows are also called Nitrile & Buna n Expansion Bellows, which mainly are used as a protective cover expansion joints & boots to maintain inner equipment preformance, especially, oil-proof performance.

Quantity:
  • BT-JRB

Buna n Expansion Bellows

Buna n Expansion Bellow are also call Nitrile & Buna n Bellows, which are mainly used as a protective cover expansion joints & boots to maintain inner equipment preformance, especially, oil-proof performance. Elastomer Buna n Expansion Bellows mainly made by silicone rubber compression molding, extrusion moulding or rubber injection moulding.
Buna n Bellows
Buna n Expansion Bellows Advantage:

1. Excellent Oil-proof
Excellent oil resistance after polysulfide rubber, acrylate and FKM
2. High tensile strength and wear resistance.
3. Good Heat Resistance:
Working Temperature -35oC-110oC. (Short-period working: 120oC)
4. Good air tightness
5. Strong Adhesion

Buna n Expansion  Bellows Disadvantage:
1. Poor ozone resistance, against storage
2. Poor electrical property
3. No resistance to aromatic solvents, halogenated hydrocarbon solvents and ketones & esters solvents
4. Low elasticity
Buna n Rubber Expansion Bellows
Buna n Expansion  Bellows Main Struction and Shape
Buna n Expansion Bellows

Straight Convolution Buna n Expansion Bellows
Buna n Rubber Bellows
Tapered Buna n Expansion Bellows
Tapered Buna n Bellows
Metal + Buna n Overmolded
Expansion  Bellows
Metal+Buna Rubber Bellows
Buna n Expansion Bellows with Clamping, Holes & Locks

Buna n Bellows with Clamp
Rubber Bellows Main Materials


Material Abbreviation Temperature Range Aging Weathering Ozone Resistance to Oil & Grease Water Swell Resistance  Flex-Fatigue Economy of Material Material Notes
Chloroprene(Neoprene) CR -40F to 250F Good Good Average Very Good Good exposure to refrigerants,can be compounded for FDA applications
Nitrile NBR -22F to 212F Poor Very Good Good Good Very Good Automotive Applications, Good Oil Proof
Ethylence-Propylene EPDM,EPM -60F to 300F Very Good Poor Very Good Good Very Good Outside Applications, Good Weather Proof
Silicone VMQ -75F to 450F Very Good Average Very Good Very Good Average Medical Applications
Fluo Rubber FKM 5F   to 390F Very Good Very Good Good Average Poor Rubber King, Widely Applications
