Metal Silicone Rubber Bellows

Rubber Bellow, known as Expansion Joints, convoluted Rubber Boots, Flexible Silicone Bellows, which made from EPDM, Silicone, NBR, CR, PTFE, TPR etc, and used as a featured essential appliance to seal dust, oil proof and other environmental elements to maintain equipment preformance in medical, industrial, automotive applications.
Availability:
Quantity:
  • BT-RB

Metal Rubber Bellows

Rubber Bellow, known as Expansion Joints, convoluted Rubber Boots, flexible medical silicone bellows, which made from elastomer rubber like EPDM , VMQ, CR, NBR etc, and as essential protective appliance to seal dust, oil proof and other environmental elements in aim to maintain equitment preformance in medical, automotive, pumping, industrial appliance.

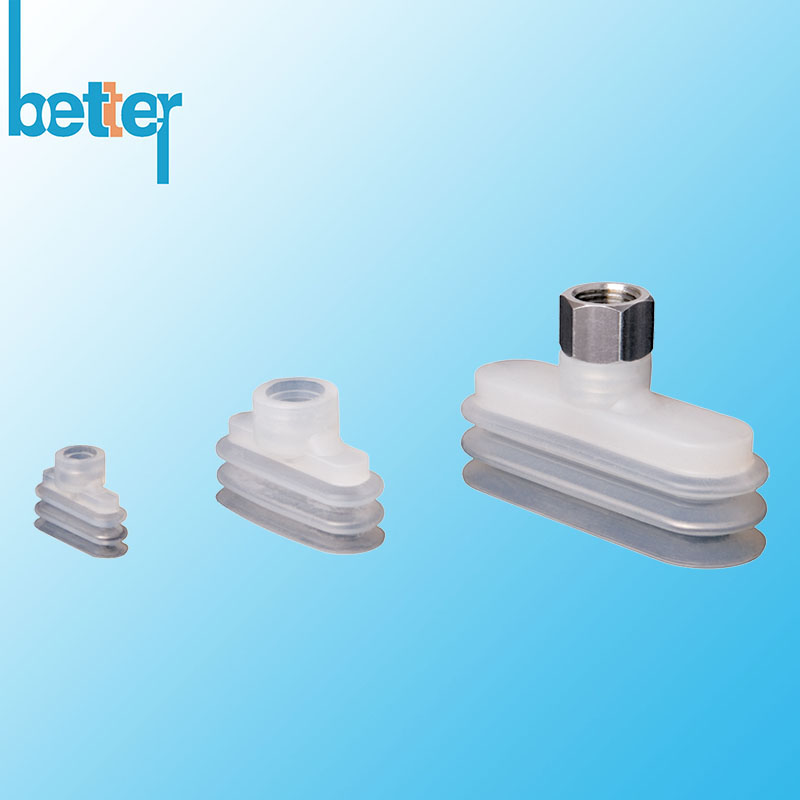

Metal Rubber Bellows, which metal + silicone rubber overmolded when production.

metal rubber overmolded bellows

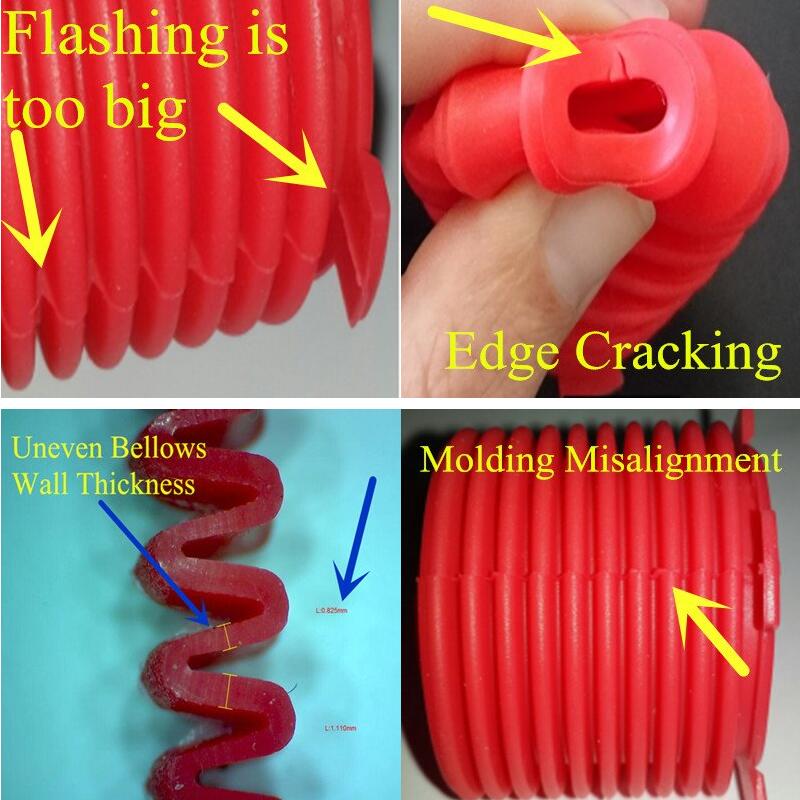

Silicone Bellows.jpg

Rubber Bellows
Rubber Bellows Main Struction and Shape
Rubber Bellows Mold
Straight Convolution Rubber Bellows
rubber expansion joint
Tapered Rubber Bellows
Silicone Bellows

flexible bellows
Metal + Rubber Overmolded Bellows
Metal Rubber Bellows

Rubber Bellows with Clamping, Holes & Locks
2(14)


Rubber Bellows Main Materials


Material Abbreviation Temperature Range Aging Weathering Ozone Resistance to Oil & Grease Water Swell Resistance  Flex-Fatigue Economy of Material Material Notes
Chloroprene(Neoprene) CR -40F to 250F Good Good Average Very Good Good exposure to refrigerants,can be compounded for FDA applications
Nitrile NBR -22F to 212F Poor Very Good Good Good Very Good Automotive Applications, Good Oil Proof
Ethylence-Propylene EPDM,EPM -60F to 300F Very Good Poor Very Good Good Very Good Outside Applications, Good Weather Proof
Silicone VMQ -75F to 450F Very Good Average Very Good Very Good Average Medical Applications
Fluo Rubber FKM 5F   to 390F Very Good Very Good Good Average Poor Rubber King, Widely Applications
