Bellows Suction Cups

Bellows Vacuum Suction Cups | Pads

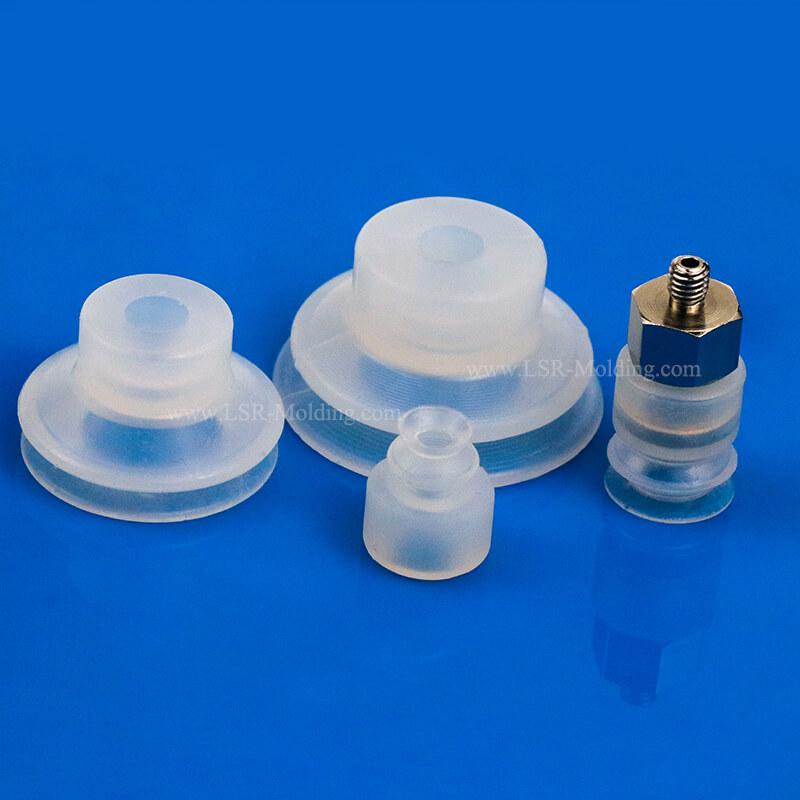

Bellows Suction Cups also known as bellows vacuum cups, bellows vacuum pads, suction bellows and rubber suckers, which have one or more convolutions to handle and lift parts with uneven surfaces, concave and convex shapes. As bellow suction cup manufacturer, we not only provide wholesale universal bellows vacuum suction cups, but also custom suction cups for EOAT robotic arm gripper, packaging/electronics industry, glass/metal/plastic sheet handling. Also we offer bellows suction cup selection guide.

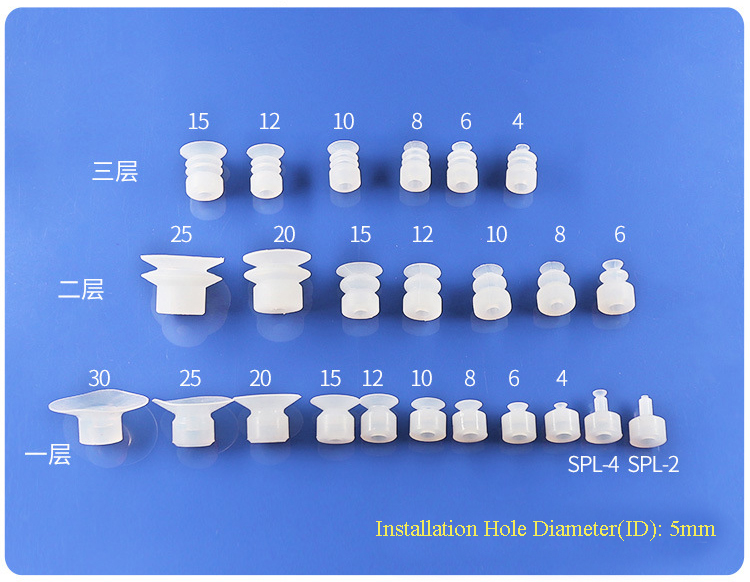

Bellows Vavuum Cups Specification (Contact us if need more size information)

Type: Flat/Bellows Suction Cups; Round

Material:Silicone

Color: Transparent

Size: 5MM/8MM (ID)

Tempetature Resistant: -40℃-230℃

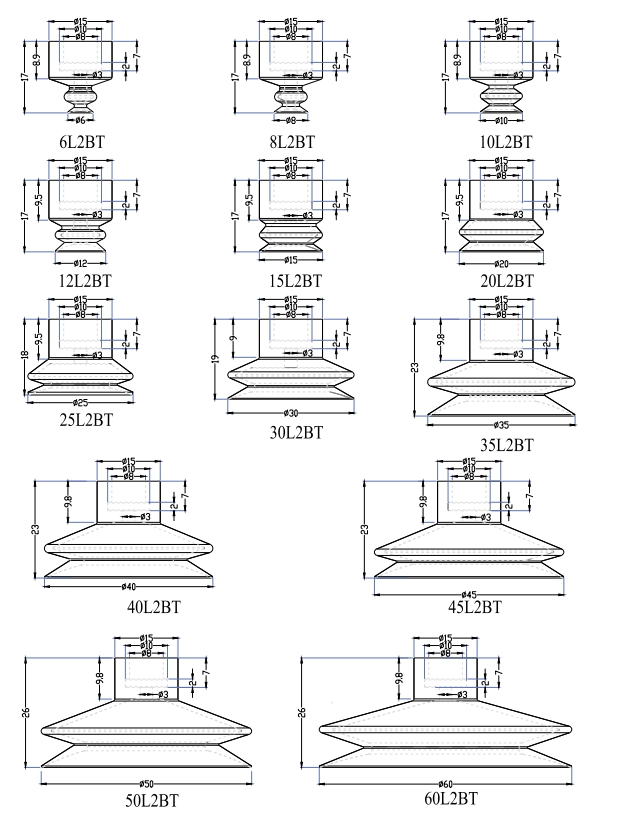

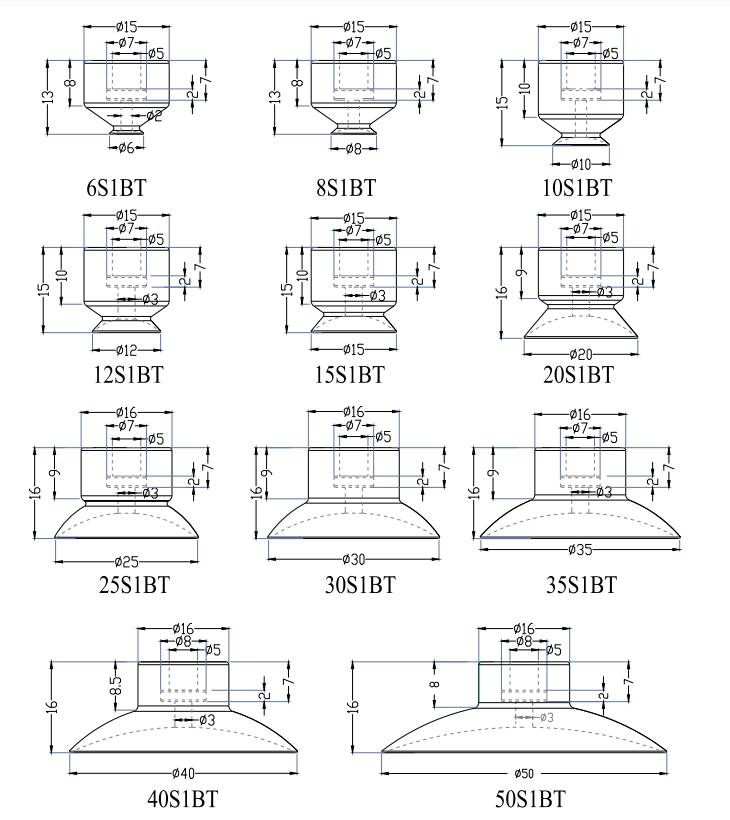

BT Suction Cups Specification 1(ID 5mm).pdf

BT Suction Cups Specification 1(ID 8mm).pdf

BT Suction Cups Specification 2(ID 5mm).pdf

BT Suction Cups Specification 2(ID 8mm).pdf

BT Suction Cups Specification 3(ID 5mm).pdf

BT Suction Cups Specification 3(ID 8mm).pdf

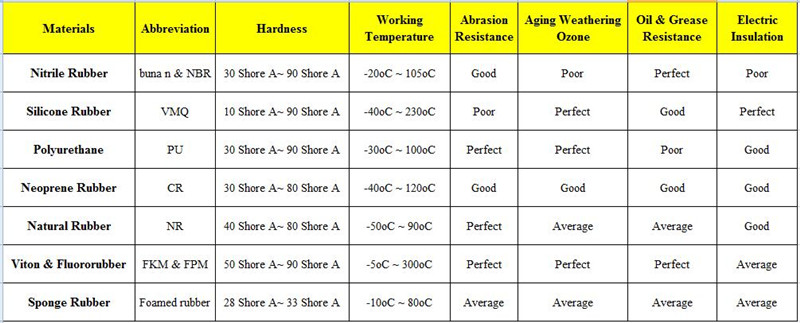

Bellows Suction Cups Selection Guide

Bellows suction cups can be made of various materials for every application. Generally, Nitrile(NBR), Neoprene(Chloroprene/CR), Silicone(food grade silicone, Liquid Silicone Rubber), Viton Fluorocarbon(FPM), Natural Rubber(NR), and PU, TPU.

Bellows Vacuum Pads Shapes & Types

• Bellows Suction Pads & Feets

• Multi bellows Suction Cups

• Bellows Threaded Suction Cup

• Round Bellows Vacuum Cups

• Oval Bellows Suction Cups

• Rectangular Bellows Vacuum Cups

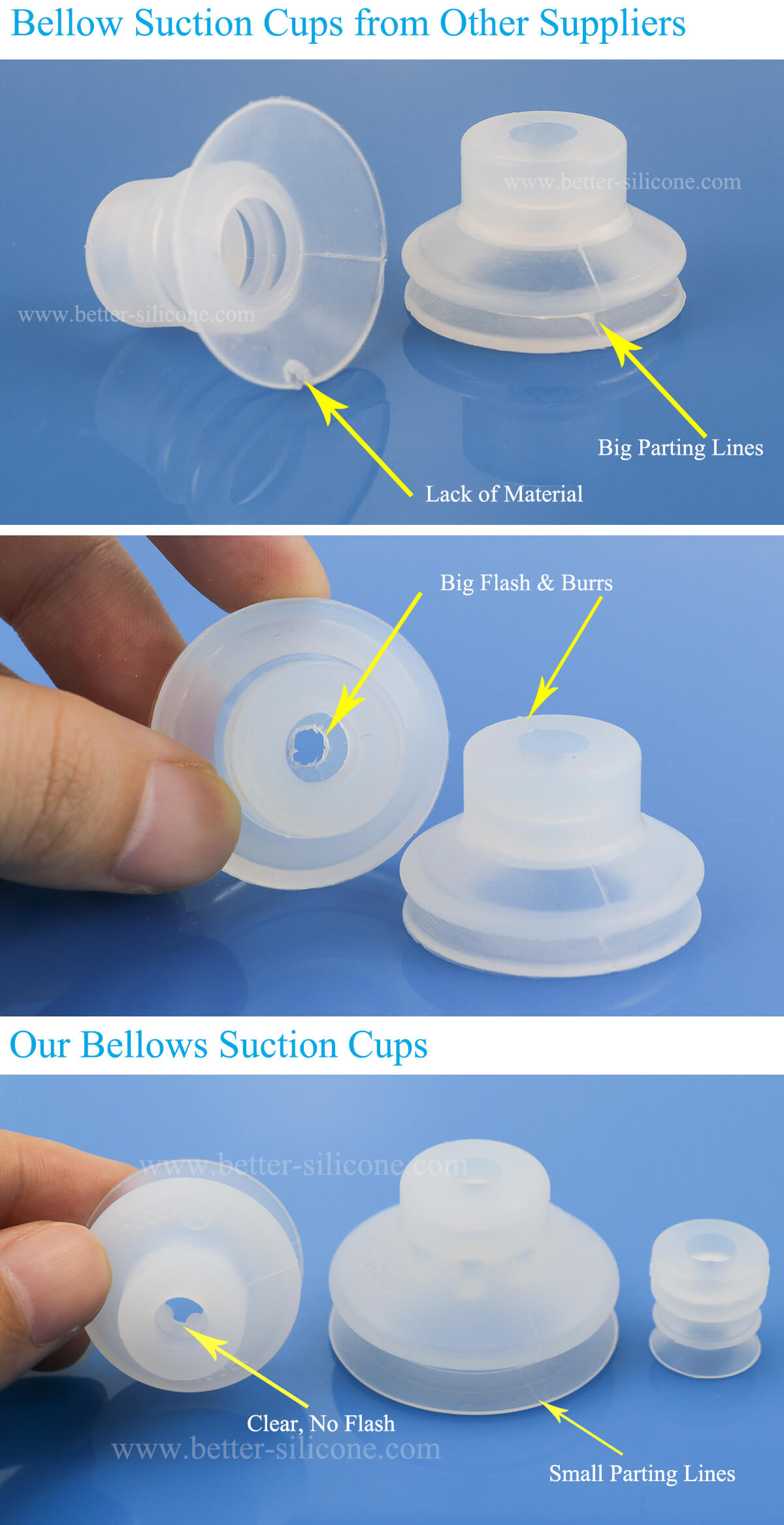

Our Bellows Silicone Sucker V.S. Rubber Suction Foot in the Market

We will see that most of the bellows suction cups in today's market have such problems: lacking of material, big parting line and big flash & blurrs in products surface. These problems are always caused by mold precision, mold tempreture and pressure controlling, production technology. As a professional silicone rubber suction cups supplier, we have done a good job in avoiding these problems.

Suction Bellows Function

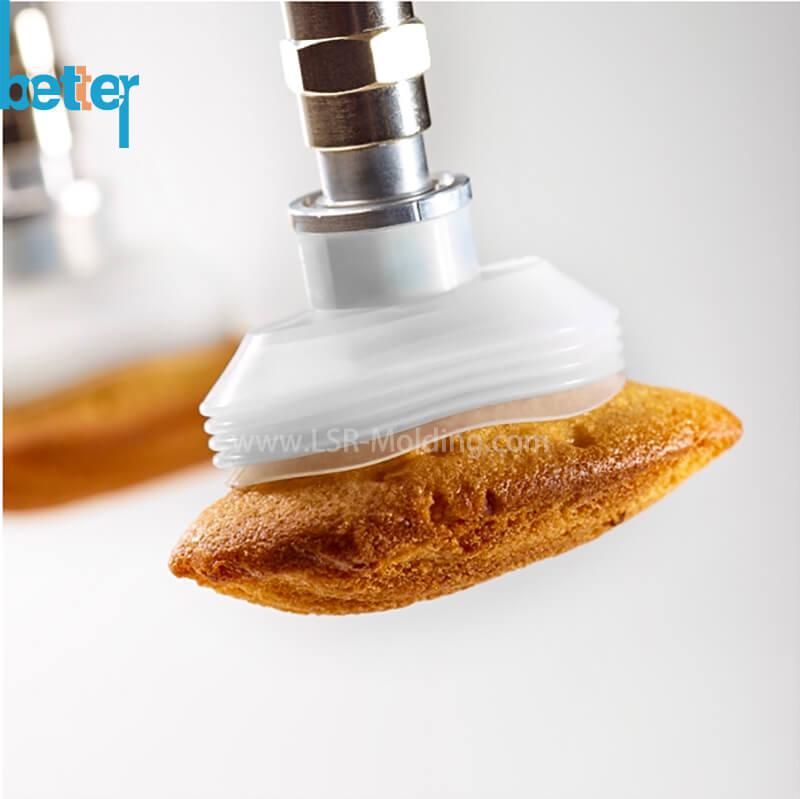

Bellows suction cups can be applied to the robotic arm of an automated assembly line to help enable the robot to pick up workpieces. They have one or more convolutions which makes them compensate for varying workpiece heights and handle parts with uneven surfaces, and fragile objects like electronic parts or even chocolate candy. Bellows sucker is useful in packaging, food, woodworking, metalworking, automotive, semiconductor and electronics industry.

Silicone Rubber Bellows Suction Cups Molds

How to make silicone bellows vacuum suction cups? We support both compression molding and liquid silicone rubber(LSR) injection molding, plastic injection molding.
