Customized Industrial Suction Cup

Industrial Suction Cup, known as Rubber Suction Cups, Vacuum Pad & Vacuum Suction Cups, which is made from elastomer rubber or silicone materials by rubber compression & injection molding or LSR injection molds, as one of final controlling element for vacuum equipments & vacuum spreaders, which can pick electronic components & panel, label or hold projects, open packaging bags, and also handle & transfer handle board, panels, concrete slabs etc.

Quantity:
  • BT-001
  • BT

Industrial Suction Cups

Industrial Suction Cup, known as Rubber Suction Cups, Vacuum Pad Vacuum Suction Cups, which is made from elastomer rubber or silicone materials by rubber compression & injection molding or LSR injection molds, as one of final controlling element for vacuum equipments & vacuum spreaders, which can pick electronic components & panel, label or hold projects, open packaging bags, and also handle & transfer handle board, panels, concrete slabs etc.


samll silicone suction cups

Rubber Industrial Suction Cup Operating & Working Principle

Industrial Suction Cup.jpgFirst, connecting the elastic rubber suction cups with the vacuum equipment via a elastomeric & metal tube, then attaching with the targeted-lifted objects like glass, panel, board or paper and trigger the vacuum equipment to suck or hook, which will produce negative pressure in silicone vacuum cup and then it will start moving the targeted-lifted objects.

When it has moved the targeted-lifted objects to the target place, vacuum equipment will smoothly inflated into the silicone rubber suction cup to change the negative pressure in silicone rubber vacuum cup into zero pressure or a bit of positive pressure, then the vacuum cup will separate from the waited-lifted objects, then the moving objects task finished.


Rubber Industial Suction Cups Advanatage:

1. Easy to use:

No matter what is sucked object material, as long as it can seal, air-proof, all can working. Electromagnetic chunk & suckers only working with metal matierals.

2. Not hurt to object components:

Because Vacuum suctions cup is made from elastomer rubber materials, objects will not damange when sucking or lay down

3. Environment friendly:

Silicone Rubber Industial Suction Cups will not pollute the environment when working, also will not create light, heat or electromagnetism etc.


suction cups

Industrial Suction Cups Rubber Materials

Industrial Suction Cup & Vacuum Suctions is mainly made from elastomeric rubber like transparent & translucent food grade or medical grade SiliconeNitrile Rubber, Polyurethane, Neoprene RubberNatural Rubber, Viton & Fluororubber, Liquid Silicone Rubber (LSR) etc.

Different rubber suctions cups materials have different properties and applications.

Rubber Suction Cups Materials.jpg

Industrial Suction Cups & Vacuum Suctions Main Shape:

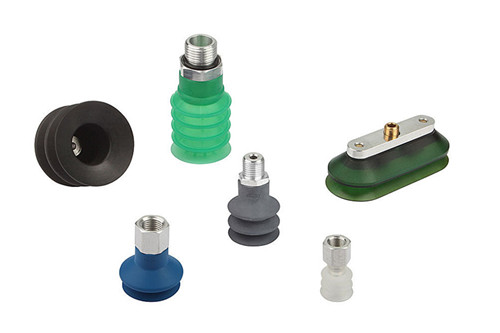

Rubber Suction Cup.jpg1. Flat Suction Cups

2. Flat Concave Suction Cups

3. Bellows Suction Cups

4. Multibellows Suction Cups

5. Deep Concave Suction Cups

6. Oval Flat Suction Cups

7. Oval Concase Suction Cups

8. Rectanagular Suction Cups

9. Rectangular Bellows Suction Cups

Silicone Suction Cups & Bellows Vacuum Cups also can overmolded or fixed with metal screws & components, plastic handles as a mounting element, level comensators, ball joints, valve, fitting etc.

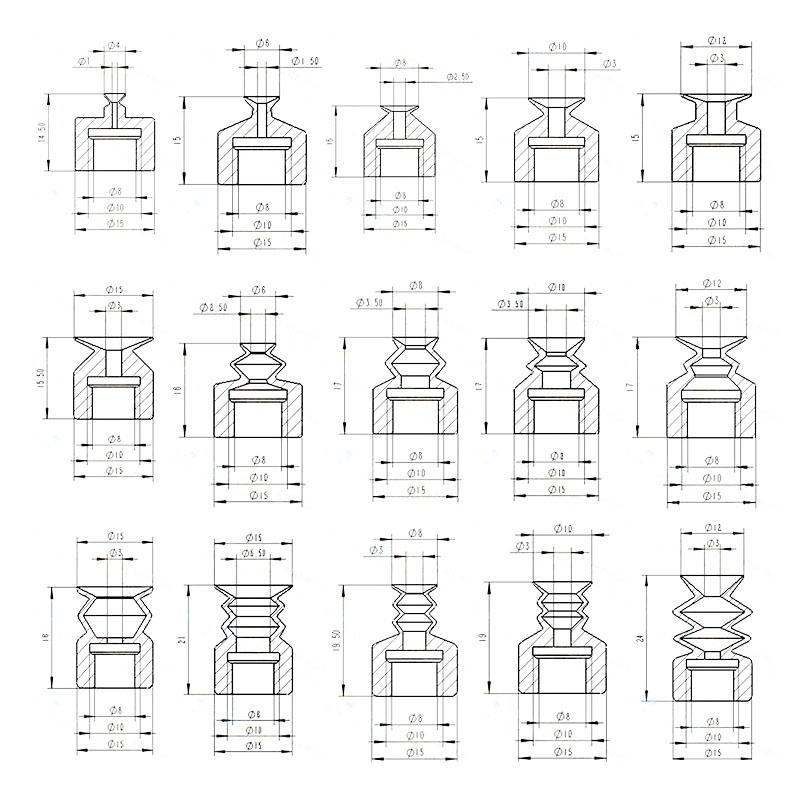

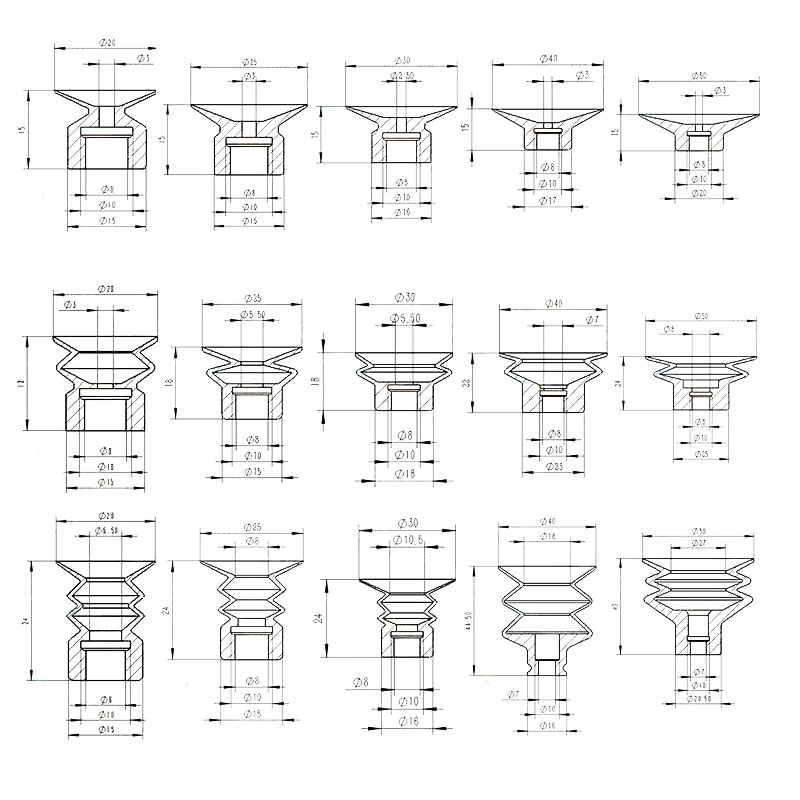

Silicone Suction Cups.jpgVacuum Suction Cups.jpg
