Translucent Silicone Backlit Keypad

Quantity:
  • Better

  • 9C1

Silicone Rubber Backlight Keypad:
That have some ways to process the backlight silicone keypads.Laser Eteching Keypad.jpg

1.      Laser Etched Silicone Keypad.
Firstly, Do Printed Ink Process, the printed ink color is same to the laser etched legends, and then spray coating on the surface the silicone rubber keypad. Lastly place the keypads on the laser etched machines for process.
  Elastic Backlit Keypad.jpg
Notes: The legends color should have a high contrast with the spray coating color

Like following case: The legends color is translucent, and the spray coated color is gray.

Laser Etched Keypad.jpg

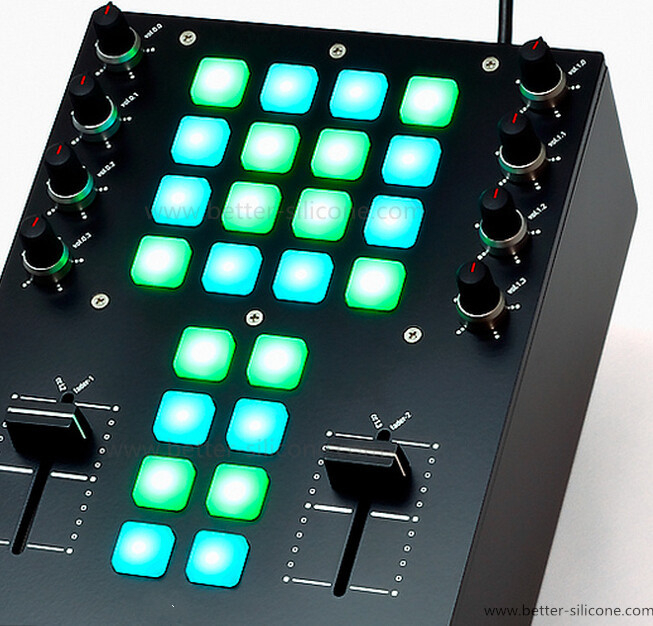

2.       Translucent Silicone Backlight Keypad

1.)     Translucent Silicone Backlight Keypad  take full advantage of silicone original materials which is translucent. Different silicone is different transparency. Generally, more better silicone materials, the color is more transparent. The original color of liquid silicone is almost transparent.
Silicone Backlight Keypad.jpg

That have two different translucent backlight Silicone Keypad:
The first one is more transparent: The one make cover tool to protect the translucent parts and then dotwo layers sprayer coating.
Rubber Backlit Switch.jpg

The Second is less transparent, which choose mixed color process way.
Rubber Backlit Keypad.jpg


2.)
  Silk Screen Translucent Silicone Backlight Keypad , generally, need spray painted before do font or symbol printing on the surface, and the do PU coating process to protect the legends. However, Silk Screen Translucent Silicone Backlight Keypad, which needn't do spray coating process. For better backlight legends effects, sometimes, also needn't do PU coating or UV+PU coating.

Knowledge: The light source of Plastic Backlit Keyboard is different the backlight which light source behind LCD.
Silk Screen Silicone Backlight Keypad.jpg

Silicone Rubber Keypads
1.    Silk Screen Silicone Keypad
2.    Laser Etched Silicone Keypad
3.    Epoxy Coating Silicone Keypad
4.    P+R Keypad
5.    Double Color Silicone Keypad
6.    Backlight Silicone Keypad
7.    Fluorescent Silicone Keypad
8.    Conductive Printing Silicone Keypad
9.    M+R Keypad
Quickly  Quotation Requirements

1. Offer 2D, 3D design (PDF, CAD, STEP, IGS, slprt. ) drawings, or samples
2. Include number of legend and silicone colors, Of need silicone light guide.
3. With or without carbon pills
4. Keypads surface demands: Laser Etched, Silkscreen, Spray Coating, UV Coating etc.
5. Quantities to be quoted

These are the primary elements for a quotation. Other details such as travel, force, durometer and tactile response can be determined at the time of order.Specialty features such as protective coatings, laser etching, light pipes, etc. should be included.
Our Advantage:
1. Precision Own Mold-Making Technology (Since 1998)
2. Competitive Price: Origin Manufacturer.

   1.) Mold-Making Plant
   2.) Silicone Rubber Compression Plant
   3.) Plastic Injection Plant
   4.) Liquid Silicone Rubber Injecton Plant (LSR)
   5.) Assembly Plant.


3. Five Experienced Designers and Engineers

4.Production and Test strictly according to ISO9001.


Test Equipment: 3D Projectors, Sealing Testor, Elasticity Measurement, Durometer etc.

5. Production Environment

6. Rapid Reaction OrganizationSupport Customer at short time
