Backlight Silicone Rubber Keypad

Custom Rubber Keypad Guide
Rubber Keypads, also called Silicone Keypad, Rubber Keyboard, Silicone Keyboard or Elastomer Keyboard etc, which is made of elastic translucent silicone rubber materials by rubber compression mold tool, is widely used in industrial electric products, medical device, machine, consumer products as a reliable switch performance.

Silicone Key Web, Key Pad, Key Top and Conductive Zones that consist of keypad major structure.
Rubber Keypad
Design and Making Silicone Keypad Mold Tool, not only in view of silicone keypad structure, like actuation force, key travel, conductive way etc, but also care about silicone keypad surface demands like color spray coating, materials choice, hardness difference etc.
Many customers pay much attention to actuation force and overlook keypad whole performance. Like silicone rubber keypad Web uniformity, spraying color coated influence, key cover effects, keypad-device integration etc.

Quantity:



Inquire Add to Basket

Brand:
Better
Code:
9C1

Product Description

Silicone Rubber Backlight Keypad:

That have some ways to process the backlight silicone keypads.

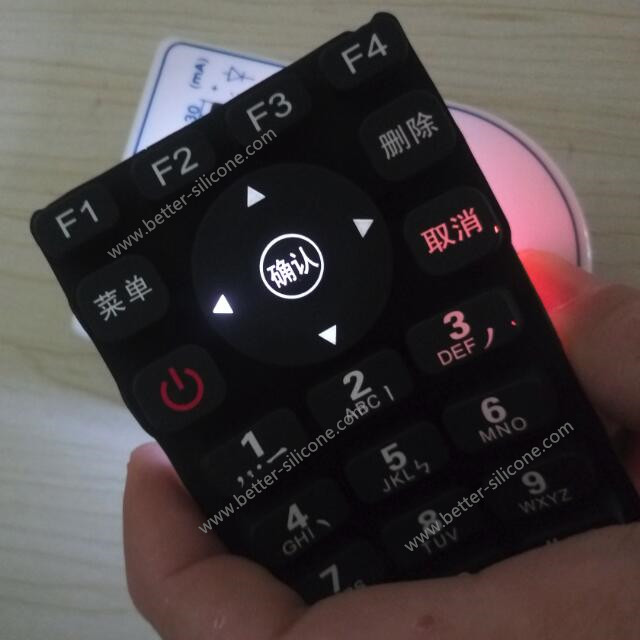

Silicone Backlight Keypad

1. Laser Etched Silicone Keypad.
Firstly, Do Printed Ink Process, the printed ink color is same to the laser etched legends, and then spray coating on the surface the silicone rubber keypad. Lastly place the keypads on the laser etched machines for process.
Rubber Backlight Keyboard

Notes: The legends color should have a high contrast with the spray coating color

Like following case: The legends color is translucent, and the spray coated color is gray.

Laser Etched Keypad.jpg

2.       Translucent Silicone Backlight Keypad

1.)     Translucent Silicone Backlight Keypad take full advantage of silicone original materials which is translucent. Different silicone is different transparency. Generally, more better silicone materials, the color is more transparent. The original color of liquid silicone is almost transparent.

That have two different translucent backlight Silicone Keypad:
The first one is more transparent: The one make cover tool to protect the translucent parts and then dotwo layers sprayer coating.

The Second is less transparent, which choose mixed color process way.

2.)    Silk Screen Translucent Silicone Backlight Keypad , generally, need spray painted before do font or symbol printing on the surface, and the do PU coating process to protect the legends. However, Silk Screen Translucent Silicone Backlight Keypad, which needn't do spray coating process. For better backlight legends effects, sometimes, also needn't do PU coating or UV+PU coating.

Knowledge: The light source of Plastic Backlit Keyboard is different the backlight which light source behind LCD.

Silicone Rubber Keypads
1.    Silk Screen Silicone Keypad
2.    Laser Etched Silicone Keypad
3.    Epoxy Coating Silicone Keypad
4.    P+R Keypad
5.    Double Color Silicone Keypad
6.    Backlight Silicone Keypad
7.    Fluorescent Silicone Keypad
8.    Conductive Printing Silicone Keypad
9.    M+R Keypad

Quickly Quotation Requirements

1. Offer 2D, 3D design (PDF, CAD, STEP, IGS, slprt. ) drawings, or samples
2. Include number of legend and silicone colors, Of need silicone light guide.
3. With or without carbon pills
4. Keypads surface demands: Laser Etched, Silkscreen, Spray Coating, UV Coating etc.
5. Quantities to be quoted

These are the primary elements for a quotation. Other details such as travel, force, durometer and tactile response can be determined at the time of order.Specialty features such as protective coatings, laser etching, light pipes, etc. should be included.
