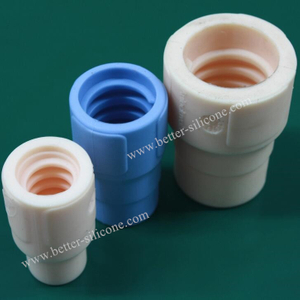

Silicone Lining Bush

Silicone lining bush playing a role of liner is mostly applied in the field of valve,which is in the valve bonnet , wrapping the valve stem. A bush or lining bush is a type of vibration isolator, it provides an interface between two parts, damping the energy transmitted and to absorb shock and reduce vibration through the rubber bushing block.

Quantity:
  • Better
  • 3926901000
  • 21.4mm
  • 31.24mm
  • 23.74mm
  • 6.2g
  • green,white, etc
Silicone Lining Bush  Description
Silicone lining bush playing a role of liner is mostly applied in the field of valve,which is in the valve bonnet , wrapping the valve stem. A bush or lining bush is a type of vibration isolator, it provides an interface between two parts, damping the energy transmitted and to absorb shock and reduce vibration through the rubber  bushing block.

Silico ne Lining Bush  Function
The Silicone lining bush  can be replaced very conveniently if it is worn out. If you don’t use the elastomer lining bush, you have to replace the whole part once abrasion. Now, people tend to replace the sleeve bushing  (while designing, the hardness of bush can be reduced to be a bearing grinding of friction pair), due to its convenient processing, low replacement cost and easy replacement, of course, also including other secondary functions, like guiding function, and etc.

A common application  of  Silicone lining bush  is in vehicle suspension systems, where a liner bushing made of rubber (or, more often, synthetic rubber or polyurethane) separates the faces of two metal objects while allowing a certain amount of movement. This movement allows the suspension parts to move freely, for example, when traveling over a large bump, while minimizing transmission of noise and small vibrations through to the chassis of the vehicle. A rubber  liner bush may also be described as a flexible mounting or antivibration mounting .

  Silico ne Lining Bush   Feature
- various hardness for your choice.
- oil resistance.
- good anti-aging performance.
- ease of bonding to other material.
- excellent oxygen and ozone resistance.
- non-flammable,self-extinguish.
- good gas tightness.
- high heat resistance.
- good abrasion resistance .

rubber bushing (2)
silicone bushing (2)

Rubber Liner Bushing   Specification

Material EPDM, NR, Silicon, FKM,IIR,NBR,SBR,Sponge Rubber, or Custom Compound
Color Black,white,red,green,transparent or any color according to Pantone colors
Size As per  customer's requirements
Hardness Shore A
Service OEM or ODM
Production basis Samples or drawings
Technology Hot pressing molding ,injection molding or extrusion
Working temperature —60~350℃
Tolerance ±0.05mm
Density 1.0-2.0g/cm⊃3;
MOQ 1 pc
Certification ROHS,FDA,ISO9001:2000
Conductivity Conductive or insulative
Working life 1-30 years
Samples  1-2 pcs of free samples are available
Application Automotive,Mechanical equipment,Construction,Home appliance,Aviation,
Office facilities,



Performance of  Silico ne Lining Bush

NBR Bushing excellent resistant to oil,widely used in industrial area
EPDM Bushing excellent resistance to weather and ozone,good resistance to heat,low temperature and chemical
NR Bushing high elasticity,good chemical strength
CR Bushing generally good resistance to ozone,aging,and chemical,good mechanical properties over a wide temperature range
SBR Bushing shock resistance,performance well in adhesion and sealing
Silicone Bushing widest operating temperature range,performance stably in high and low temperature,widely use in food sealing area
VT/FKM Bushing excellent resistance to high temperature and a broad range of chemical,permeability and compression set are excellent
HNBR Bushing thermal stability and oxidation resistance
IIR Bushing low permeability rate and good electrical properties
FVMQ Bushing widest operating temperature range,performance stably in high and low temperature,good resistance to oil and fuel
ACM Bushing good resistance to mineral to oil,oxygen and ozone


Manufacturing Process of  Silico ne Lining Bush
Silicone lining bush   is  manufactured by compression molding in our Automatic Hydraulic Compression Molding Presses.
Along with our in-house tool room, and highly experienced manufacturing team, our range of Mo l ding machines enable us to deliver:
·  Uniform Vulcanization / Curing of the Material: All parameters (like pressure, temperature and vulcanization time) are automatically controlled.
·  Excellent Dimensional Accuracy: We offer high dimensional accuracy in the rubber bush .
Huge range of designs and sizes: We offer rubber liner bush in a huge variety of designs/sizes.

medical valves

silicone rubber plant
