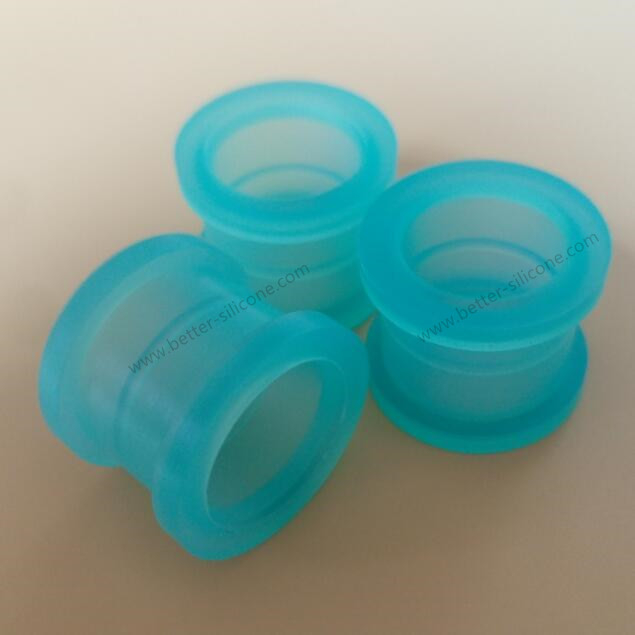

Elastomer Bushing

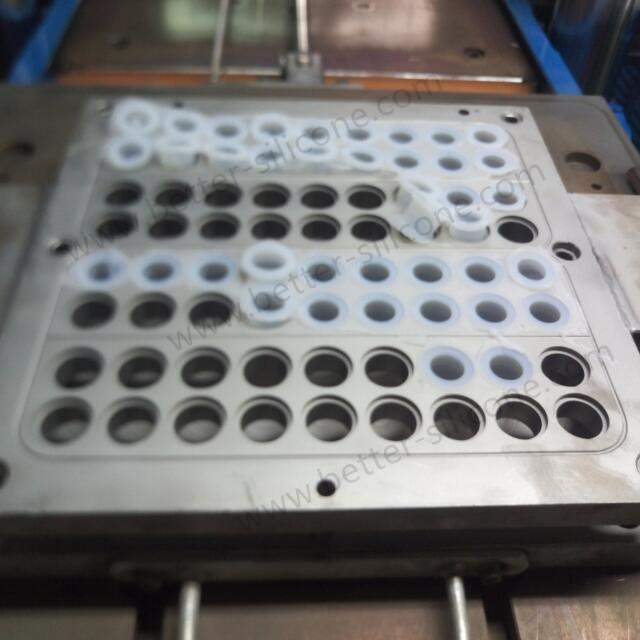

Rubber Bushing, also called rubber sleeves, which is made of elastomeric silicone rubber, is made by rubber compression mold tool. The materials of elastomeric Bushing mainly choose high tensile silicone rubber.
If bushing used in medical device, mainly choose FDA standard silicone rubber materials.
Quantity:
  • Better

  • 3926901000

Elastomer Bushing
Rubber Bushing, also called Silicone bushing, rubber sleeves, which is made of elastomeric silicone rubber, is made by rubber compression mold tool. The materials of elastomeric Bushing mainly choose high tensile silicone rubber. If bushing used in medical device, mainly choose FDA standard silicone rubber materials.
Rubber Bushing
Rubber Bush
Rubber Bushing
Rubber bushing playing a role of liner is mostly applied in the field of valve,which is in the valve bonnet , wrapping the valve stem. A bushing or silicone bushing is a type of vibration isolator, it provides an interface between two parts, damping the energy transmitted and to absorb shock and reduce vibration through the bushing.

Rubber Bushing
Rubber Bushing Function
The rubber bushing can be replaced very conveniently if it is worn out. If you don’t use the bushing, you have to replace the whole part once abrasion. Now, people tend to replace the bushing bolck (while designing, the hardness of bushing can be reduced to be a bearing grinding of friction pair), due to its convenient processing, low replacement cost and easy replacement, of course, also including other secondary functions, like guiding function, and etc.

A common application of rubber bushing is in vehicle suspension systems, where a sleeve bushing made of rubber (or, more often, synthetic rubber or polyurethane) separates the faces of two metal objects while allowing a certain amount of movement. This movement allows the suspension parts to move freely, for example, when traveling over a large bump, while minimizing transmission of noise and small vibrations through to the chassis of the vehicle. A silicone bushing may also be described as a flexible mounting or antivibration mounting.

 Rubber Bushing  Feature
-various hardness for your choice.
-oil resistance.
-good anti-aging performance.
-ease of bonding to other material.
-excellent oxygen and ozone resistance.
-non-flammable,self-extinguish.
-good gas tightness.
-high heat resistance.
-good abrasion resistance .

Elastomer Rubber Bushing Materials

NBR Bushing excellent resistant to oil,widely used in industrial area
EPDM Bushing excellent resistance to weather and ozone,good resistance to heat,low temperature and chemical
NR Bushing high elasticity,good chemical strength
CR Bushing generally good resistance to ozone,aging,and chemical,good mechanical properties over a wide temperature range
SBR Bushing shock resistance,performance well in adhesion and sealing
Silicone Bushing widest operating temperature range,performance stably in high and low temperature,widely use in food sealing area
VT/FKM Bushing excellent resistance to high temperature and a broad range of chemical,permeability and compression set are excellent
HNBR Bushing thermal stability and oxidation resistance
IIR Bushing low permeability rate and good electrical properties
FVMQ Bushing widest operating temperature range,performance stably in high and low temperature,good resistance to oil and fuel
ACM Bushing good resistance to mineral to oil,oxygen and ozone
