Precision Silicone Rubber Seal + 3M adhesive gummed Tape

Views:4     Author:Hardy Ho     Publish Time: 2015-10-13      Origin:www.better-silicone.com

Precision Silicone Rubber Seal + 3M adhesive gumming Tape:
Which is silicone rubber gasket gummed 3M adhesive tape in aim to
improve the silicone rubber seal water-proof and anti-dust function for electronic products.
Mainly choose IPxx grade to distinguish Anti-dust and waterproof grade. Like IP56, IP 55,IP 65, IP67 etc.
Mostly Usage: Smart Cellphone Products, Medical Products, Electronic Products etc.

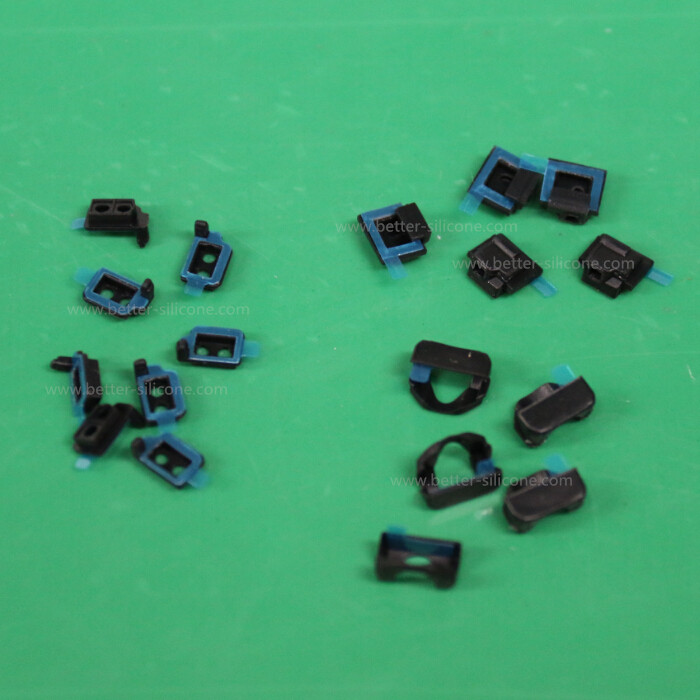

Silicone 3M adhesive Tape

Silicone Rubber Parts Process:
1. Making Silicone Rubber Mold Tooling
2.
After finished mold, produce silicone rubber samples (about 5-10 molds) for test
3.  Test each cavity silicone rubber samples by 3D projectors if  dimensions within tolerances.
     Same precision samples need to cut (
Cutting cross section) which is easy to test the sizes and designs.
4.If dimensions is ok, send the whole piece of silicone products to 3M tape factory for deal with adhesive tape.

Notes:
  1. If big silicone rubber products, burring firstly, and then deal with 3M adhesive tape
           2. If small silicone rubber parts,  generally deal with adhesive tape firstly, and then choose fixture tooling   (cutting/punching die) to burring. Or removing the big barbs, and then deal with the adhesive tape, finally fixture tooling   (cutting/punching die) to burring.
3M Process

3M Adhesive Process
1. Paste double sides adhesive tape with the anti-adhesive sides of anti-adhesive paper;
2. Cutting the inner round holes by cutting die;
3. Silicone products be coated Silica gel treatment agent; (Notes: Silica gel treatment agent should be even/ well-distributed; and should not coat on the surface of silicone products)
4. Right placed stick double sides adhesive tape , the surface of adhesive tape should be even.(Notes: Should not a little off; and should not have bubble.)
5. Next Die Cutting for burring
6. After finished die cutting, check if have less materials or not clear cutting.
7. Test the finished products by 3D projects and amplification instrument
8. Before package, check the silicone+3M tape one by one.

3M Tape Silicone Seal


Our Advantage:

1. Competitive Price: Origin Manufacturer.

2. Quality Advantage:


1.) Own Mold Tools Making since 1998.
    2.) Dust-free production environment: 1 LSR injection Machines, 3 Sets Rubber Compressive Machines, and Assembly Line in                  100,000 rating     Dust-free Plants.

3.  Fully production equipment and Testor


1.) Five Plants: Mold-Making, Silicone Rubber Compressive, Plastic Injection, LSR Injection, and Assembly Plants.
       2.) Mold-Making Equipment: CNC, Mirror EDM, EDM, Slow-speed Wire Cut M/C and other  auxiliary equipment etc.
       3.) Production Equipment: 12 Sets Rubber Compressive Machines, 6 Sets Haitian Plastic Injection Machines, 1 Set LSR            Injection Machines.
       4.) Test Equipment: 3D Projectors, Sealing Testor, Elasticity Measurement, Durometer etc.


4. Production and Test strictly according to ISO9001.

5. Experienced staff

6. Fast-reaction Organization:
