Transparent Translucent Silicone Backlight Keypad 4x4 keys

Translucent Silicone Keypad:
Button Pad 4x4 - LED Compatible

These lovely silicone rubber elastomer button pad (grids/keypads) are the perfect fit for a 3mm or 5mm LED, giving you light up buttons to add to your project! (If you use different LED, we can adjust the pigment ratio to enjoy your demands. )
4*4:
2*2
Quantity:
  • Better

  • Translucent Silicone

  • Conductive Printing

  • Basic Material+White Toner

  • 3mm or 5mm LED

Button Pad 4x4 - LED Compatible

These lovely silicone rubber elastomer button pad (grids/keypads) are the perfect fit for a 3mm or 5mm LED, giving you light up buttons to add to your project! (If you use different LED, we can adjust the pigment ratio to enjoy your demands. )
K16 (157)_副本.jpg


Description :
1.     This is a translucent silicon rubber button pad with 16 buttons originally Each button has a hole underneath that accepts either a 3mm or 5mm standard LED. The idea is that you can create a button interface of your choice with the ability to display simple colors under each button. Mainly, we wanted to use our tri-color LEDs to create a full RGB color for each button.

2.     Translucent Silicone Rubber Button Pad (Keypad)
Because material characteristics of silicone, choose basic silicone materials with corresponding pigment ratio, which can find good effects of nonopaque Led keypads, which is popular to use in Music, Led Lighting, Decoration, Electronic products etc. Because different light source have different lighting effects, We generally help customer produce silicone pigment ration keypads for test and choice.

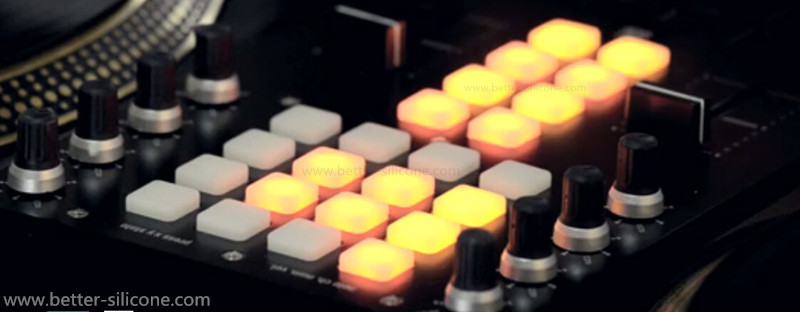

K16 (158)_副本.jpg

3.      Silicone Electronic Conductive Printing:
For good quality and usage, we choose silicone electric conductive silicone and printing, not black carbon. And this production way also can save molding cost and per unit cost for our customers. Fixed ideas that rubber/silicone keypads need black carbons, some customers will not accept silicone electric conductive printing. Actually, the silicone electric conductive printing is new production way, the function and usage is more durable.

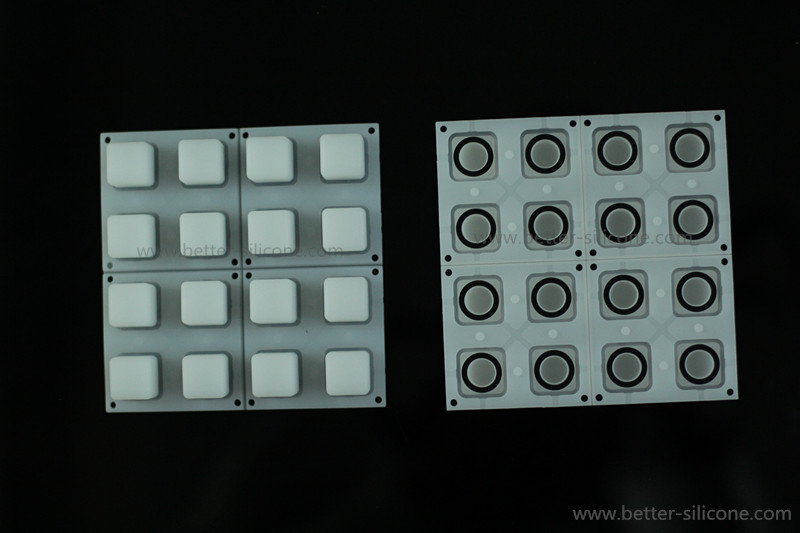

4.     16 button pad can be split up into four, 4 button pads. Each button has a conductive circle backing so that a switch can be created with exposed PCB traces. Button force is between 190 and 210grams activation force (nice tactile feel like on your TV remote)
K16 (111)_副本.jpgQQ截图20150622225210.jpgK16 (116)_副本.jpgK16 (165)_副本.jpgButton-Pad-3_副本.jpg
