Superconductive Silicone - Electrically Conductive Rubber Sheets

Our company superconductive & electrically conductive composite material comprises of elastomeric silicone rubber and silver-plated copper particles. It is formulated for the production of sheet, tubing & Sleeves, O-ring, Ring Seal, Flat gaskets and custom molded that offer a combined high level of EMI &EMC or RFI shielding and environmental sealing over a wide temperature range. Superconductive Silicone Rubber provides excellent resistance to environmental degradation.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Conductive Silicone & Super Conductive Silicone Rubber

Xiamen Better Silicone Rubber Co.,Ltd can produce different kinds of thermally electrically superconductive & conductive silicone seal, molded sheets, gasket, O-ring, ring washer etc, which is made of elastomer silicone rubber with electrical conductive materials like graphite, nickel, glass silvering, sliver-plated aluminum, copper particles etc, in aim to reduces or eliminates the EMI, EMC or RFI (electromagnetic interference and radio frequency interference) noise that is often associated with electronics.

Conductive silicone durometer & hardner	Shore A 30~ Shore A 85
Conductive Rubber Density	3.5g.cm3
Conductive Silicone Rubber Volume Resistance	<0.005Ω.cm³
Tear Strength	2.0Mpa
Elongation at break	100%
Compression Set (-72 hours at 100 oC)	<25%
Temperature Resistance	-55oC to 160oC
Color	Tan

Conductive Silicone Rubber.jpg

Conductive Rubber Pad.jpg

Conductive Rubber.jpg

Shielding Effectiveness
200kHz (magnetic field)	80dB
100MHz (electric field)	110dB
500MHz (electric field)	110dB
2GHz (plane wave)	115dB
10GHz (plane wave)	115dB

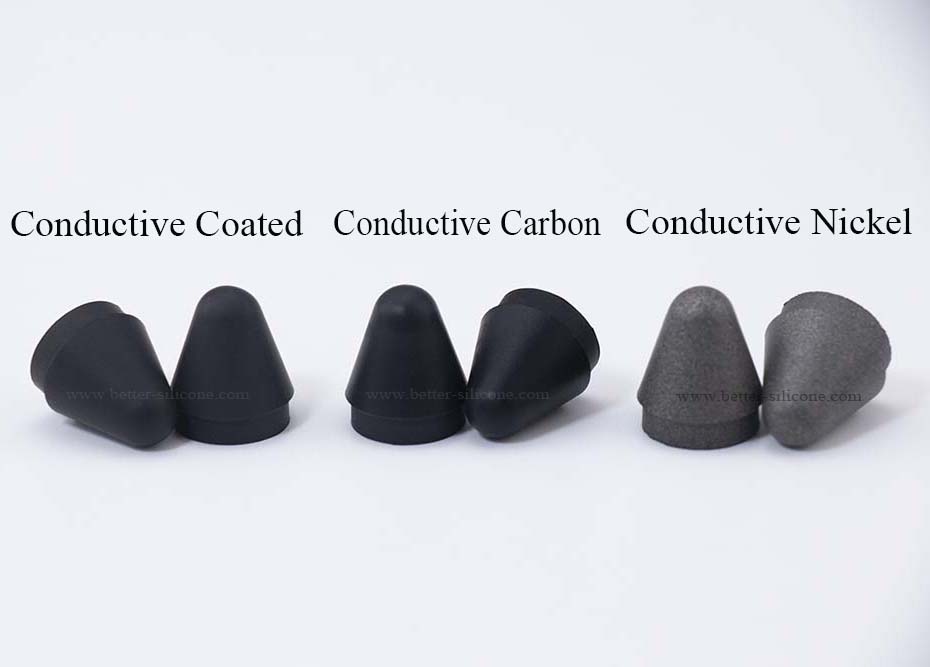

Conductive Silicone Rubber Stylus Tips for pen, mainly made by conductive spraying coating with protective paint. Some is made from conductive rubber materials.
