Silicone Pressure Relief Valve

Rubber Silicone Pressure Relief Valve

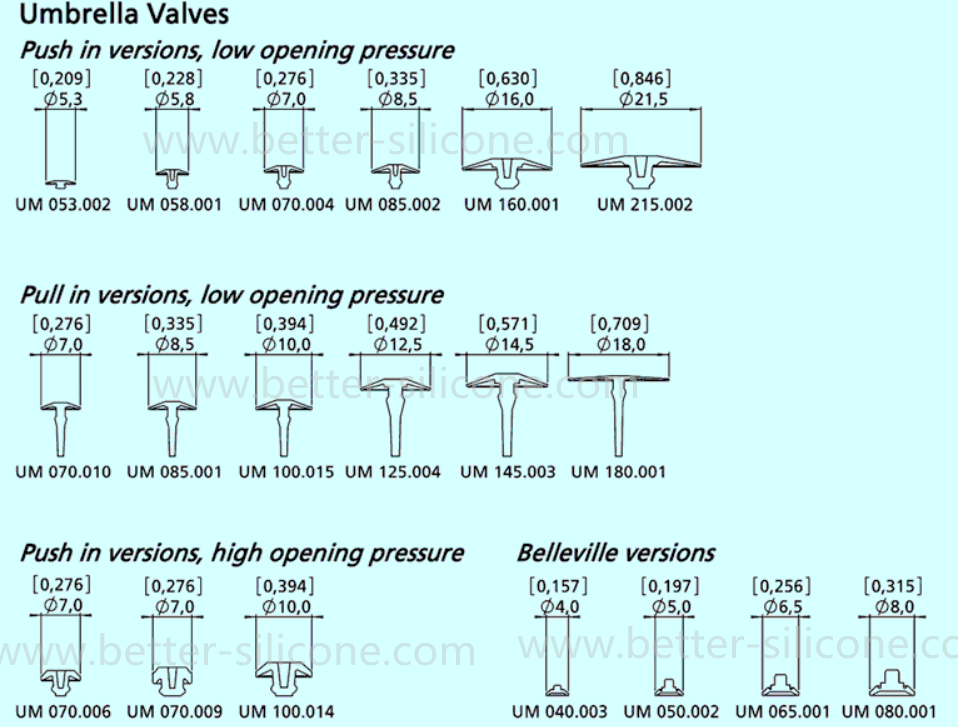

Pressure Relief Valves are used for controlling the direction of flow of a fluid. Designs can include umbrella valves, duckbill valves, Belleville Valves and diaphragm valves etc.
One way valves can be designed to provide the customer's required head loss and flow rate for particular applications.
A range of materials and designs are available to handle different fluids and service conditions.

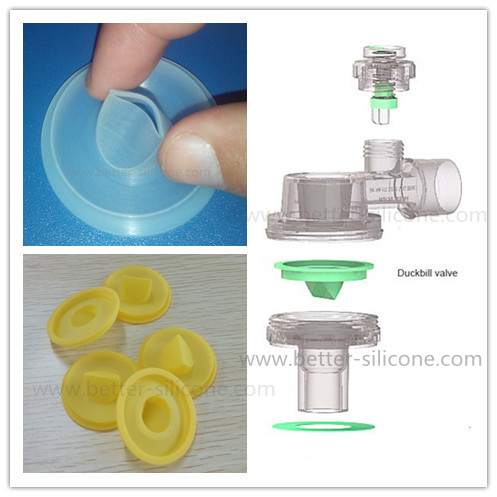

Silicone Duckbill Valve, mostly used in the Patient Valve for Manual Resuscitator.
Availability:
Quantity:
  • Better Silicone

  • SM-301

Rubber Silicone Pressure Relief Valve
Pressure Relief Valves are used for controlling the direction of flow of a fluid. Designs can include umbrella valves, duckbill valves,  Belleville Valves and diaphragm valves etc.
One way valves can be designed to provide the customer's required head loss and flow rate for particular applications.
A range of materials and designs are available to handle different fluids and service conditions.

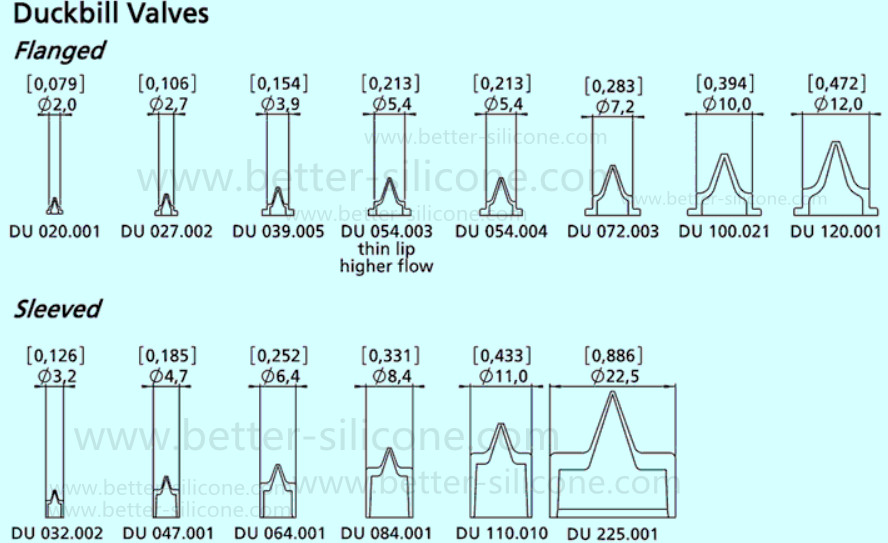

Silicone Duckbill Valve, mostly used in the Patient Valve for Manual Resuscitator.

Pressure Relief Valve
Materials Silicone, LSR(liquid silicone rubber)
Materials Demands Medical/Food Standards
Materails Certification FDA, LFGB, ROHS, SGS etc.
Working Temperature -40oC - 230oC
Durometer/Hardness 30-90 Shore A
Opening Ways Disburring, Die Cuting (punching) or Crash Cutting ect.
Color Available
Prodction Environment Clean Room
Packing Requirement Air in packaging bag to prevent deformation


Silicone Pressure Relief Valve

silicone pressure relief valveDuckbill Pressure Relief Valve

Our Advantage:


1. Own Precision Mold Tooling Making Technology (Since 1998 year)

2.  Competitive Price: Origin Manufacturer.


     1.)Four Production Plant: Mold Tooling Making Plant; Silicone Rubber Compression Plant; Plastic Injection Plant; Liquid Silicone Rubber Injection Plant(in 100,000 grade Clean room);
      2.) One 100,000 Grade Clean Room Assembly Plant.


3. Five e xperienced technical persons:
    Offer technology/production/design/artwork support etc.


4. Production and Test strictly according to ISO9001:2008.       Test Equipment: 3D Projectors, Sealing Testor, Elasticity Measurement, Durometer etc.

5.  Dustfree Environment:
  LSR injection Machines, Assembly Line in 100,000 rating Dust-free Plants.


6. Fast-reaction:

Rubber Pressure Relief Valve

  Pressure Relief Valve
Pressure Relief Valve


Xiamen Better Silicone Co.,Ltd is your partner in the development, manufacturing and worldwide distribution of miniature, self-actuating valves and elastomeric valve components for innovative products. Particularly one-way valves and pressure relief valves such as duckbill valves and umbrella valves, dispensing valves and access valves.
We supply to Original Equipment Manufacturers (OEMs) in the healthcare, automotive, appliance, water handling and food and packaging industries.

Products Development
Our technical department develops miniature fluid control components for both our catalog as well as for your specific custom requirements:
1.Precision Own Mold-Making Technology since 1998.

2. In-depth knowledge of silicone rubber compression production.
3. Mature Experience of avoid out of shape and damage from Production to Shipment: Materials Choice, Design Improvement and Packing Information.
4. In-depth knowledge of fluid control technology.
5. In-depth knowledge of elastomer as an engineering material
6. Rapid prototyping with full sizes production equipment and production materials. (Liquid Silicone Injection Machines, Silicone Rubber Compressive Machines)
7. Experienced clean room and precision manufacturing technology.
These seven competencies allow us to take a quick and integrated approach when designing a new part, taking function, quality and cost simultaneously into consideration.

Manufacturing
Our main manufacturing processes are:
Precision Mold-Making, Silicone Rubber Compressive Production, Liquid Silicone Rubber (LSR) Injection Production, Plastic Injection Production and Assembly.
Most processes (except mold-making) are running in a clean room environment
