Liquid Silicone Rubber Injection Mold

Liquid silicone molding, is also called LSR injection Mold Tooling & LIM, which can produce liquid silicone rubber parts or products by injection molded machines, not by traditional silicone rubber compression machines using traditional production method, but by liquid silicon rubber injection mold production, which is safer, more precise & environmentally friendly & transparent, using less manpower, and having high production efficiency compared with rubber compression mold.
Quantity:
  • Better

Liquid Silicone Rubber molding

Liquid silicone molding, is also called LSR injection Mold Tooling & LIM, which can produce liquid silicone rubber parts or products by injection molded machines, not by traditional silicone rubber compression machines using traditional production method, but by liquid silicon rubber injection mold production, which is safer, more precise & environmentally friendly & transparent, using less manpower, and having high production efficiency compared with rubber compression mold.

More Precise: not only in design and size/dimension tolerance, silicone rubber flashing, parting line, but also in plastic or metal + liquid silicone rubber over-molding products.

Safer: Liquid Silicone Rubber molding produce and assembly in dust-free plant. Generally produces silicone baby products like silicone nipple, silicone bottles, silicone baby pacifiers, etc.; and products used in medical device or medical package, especially, liquid silicone implantable body parts.

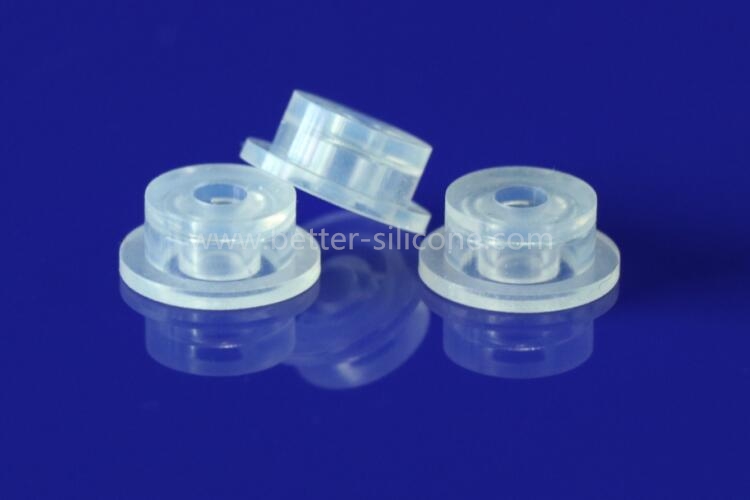

Liquid silicone rubber Gasket

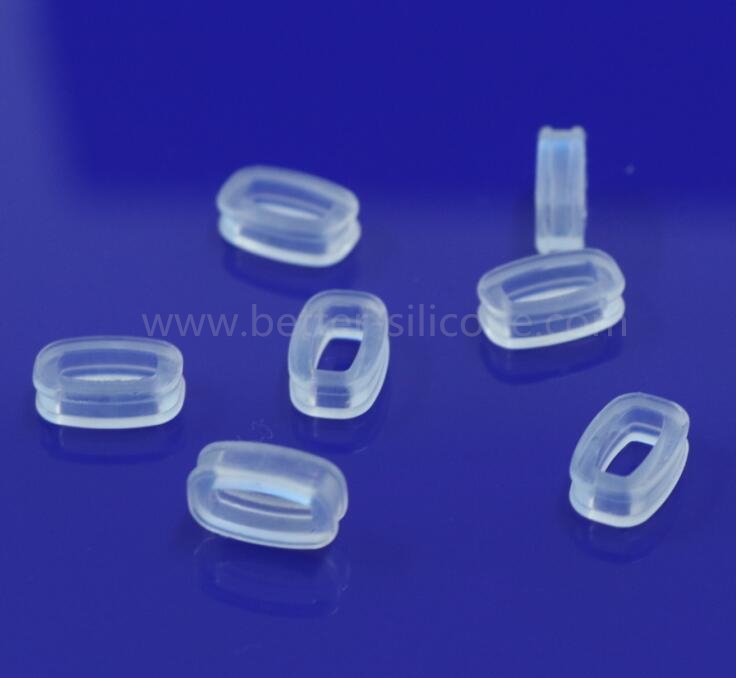

Liquid silicone Sealing

More Environmentally friendly and less manpower:

Silicone compression mold, workers need work in high temperature for keeping mold temperature during production. Silicone rubber compression accessories need a lot of labor for removing burrs / flash.
Liquid silicone injection production, like plastic injection, operates in 100,000 grade clean room and suitable temperature conditions. Some of them is auto flashing cutting.
High production efficiency: liquid silicone rubber molding, such as plastic injection, production time is short compared with compression molding.


liquid silicone rubber moulding


Xiamen Better Silicone Import and Export Co., Ltd, not only can make rubber compression tooling & plastic injection molding, produce silicone rubber compression parts & products, but also can make liquid silicone rubber injection mold and produce liquid silicone products.
Four production plants: Mold-Making Plants, Silicone Rubber Compression Plant, Plastic Injection Plant, Liquid Silicone Rubber Injection Plant.

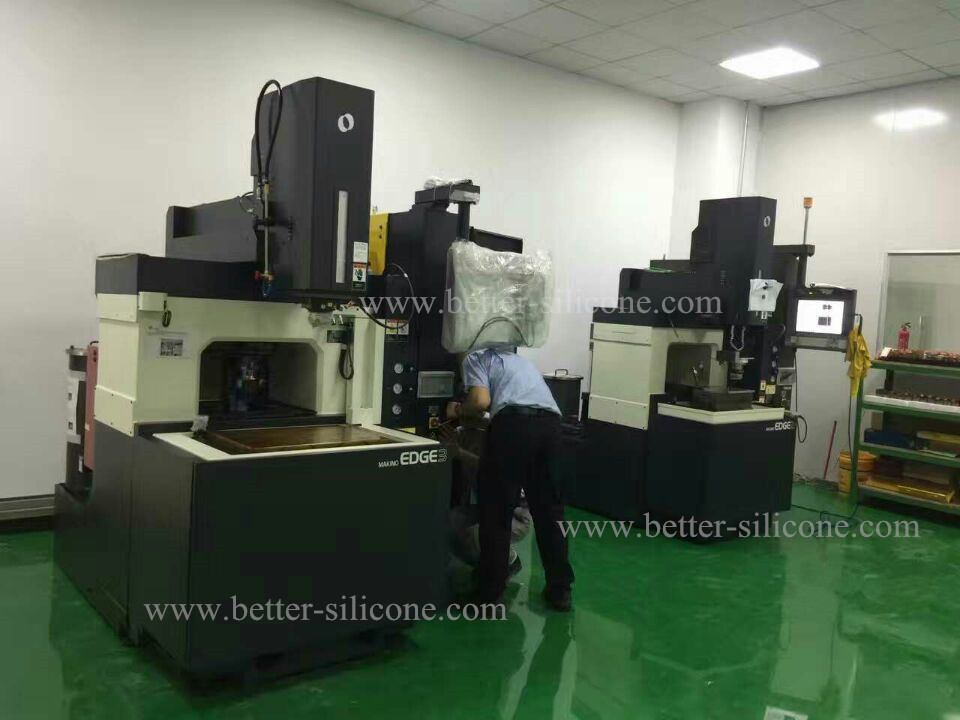

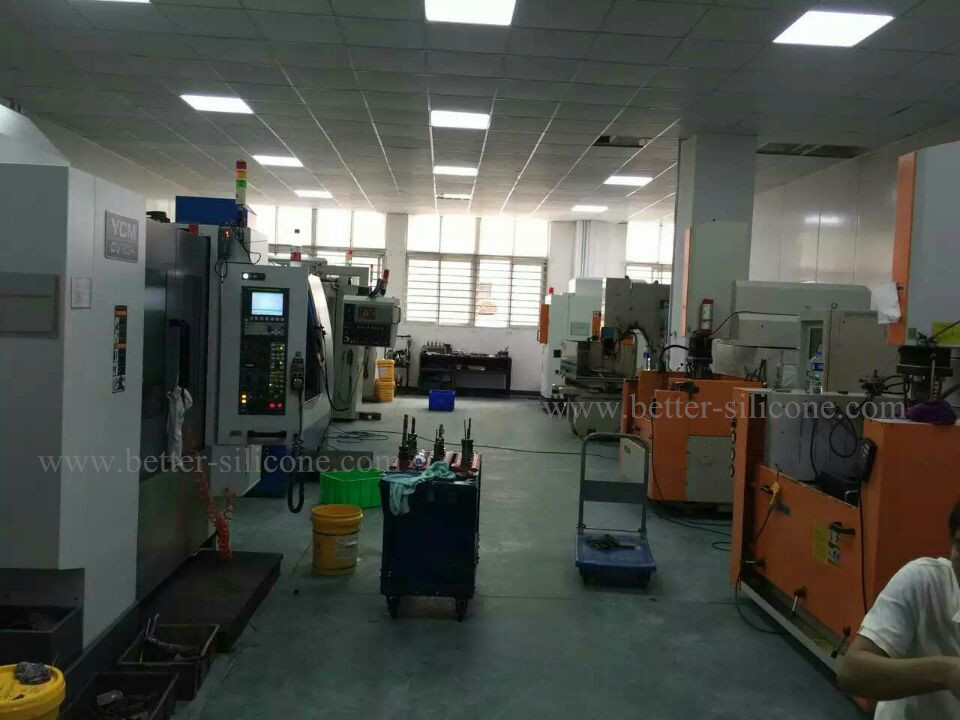

At the beginning, our company only have basic and good CNC, EDM, Grinder, Milling machines etc. For better mold quality, we also have one imported precisely high speed CNC, two mirror EDM, one precision Grinder and related test device now.

Compression silicon rubber molded parts tolerance, can be +/- 0.02mm, like for medical device, smart cell phone, electronic and so on.

Our company not only can produce normal precision liquid silicone rubber products, but also can make metal + liquid silicone & plastic + liquid silicone rubber over-molding products.

LSR+Plastic Injection Part


Our Q uality  Speaks for Us
Different from counterparts, our company prefer to produce and offer qualified product at reasonable price, rather than produce d by  second-class materials and save deserved mold-making process, even at the expense of loss orders. Please believe: What Price, What Goods.
liquid-sil (2)
silicone-m
silicone-m (2)
