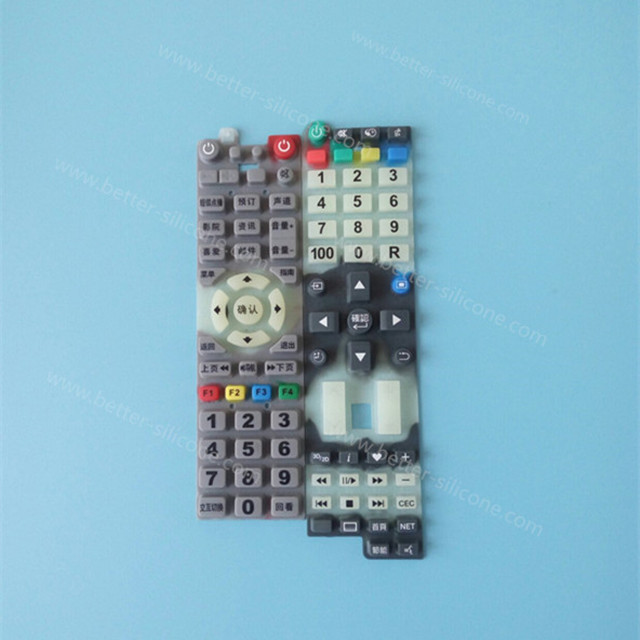

Silkscreen Printing Silicone Rubber Keyboard: Silkscreen Printing Silicone Rubber Keyboard, which have two process ways: Surface Silk Screen Keypad and Bottom Silkscreen Keypad. Surface Silkscreen Keypad: The keypad need to spray painted before do font or symbol printing, and then do PU coating Process to protect the legends. Bottom Silkscreen Keypad: This kinds keypad is generally for transparent silicone keypad.
Notes: If the surface keypad radian is high, The best choose pad printing (transfer printing).
Silkscreen Printing Silicone Rubber Keyboard Abrasion and Protection: Font or symbol on the surface of silicone rubber keypads and spray paint is easy to wear off if without PU coating, UV+PU coating, Epoxy Coating or Sealplast ect.
1. Offer 2D, 3D design (PDF, CAD, STEP, IGS, slprt. ) drawings, or samples 2. Include number of legend and silicone colors, Of need silicone light guide. 3. With or without carbon pills 4. Keypads surface demands: Laser Etched, Silkscreen, Spray Coating, UV Coating etc. 5. Quantities to be quoted
These are the primary elements for a quotation. Other details such as travel, force, durometer and tactile response can be determined at the time of order.Specialty features such as protective coatings, laser etching, light pipes, etc. should be included.
