Medical Grade Silicone Injection Mold

Silicone Injection Mold, known as Liquid Injection Mold or LSR Moulding, which designed to improve silicone molded production efficiency, enhance silicone molded precision, reduce silicone materials waste, also in aim to achieve silicone molded automation and to enhance the FDA medical grade liquid silicone (or food grade) products safety.
Availability:
Quantity:
  • SL-03

  • Better-Silicone

  • 3926901000

Silicone Injection Mold

Silicone Injection Mold, known as Liquid Injection Mold or LSR Moulding, which designed to improve silicone molded production efficiency, enhance silicone molded precision, reduce silicone materials waste, also in aim to achieve silicone molded automation and to enhance the FDA medical grade liquid silicone (or food grade) products safety.

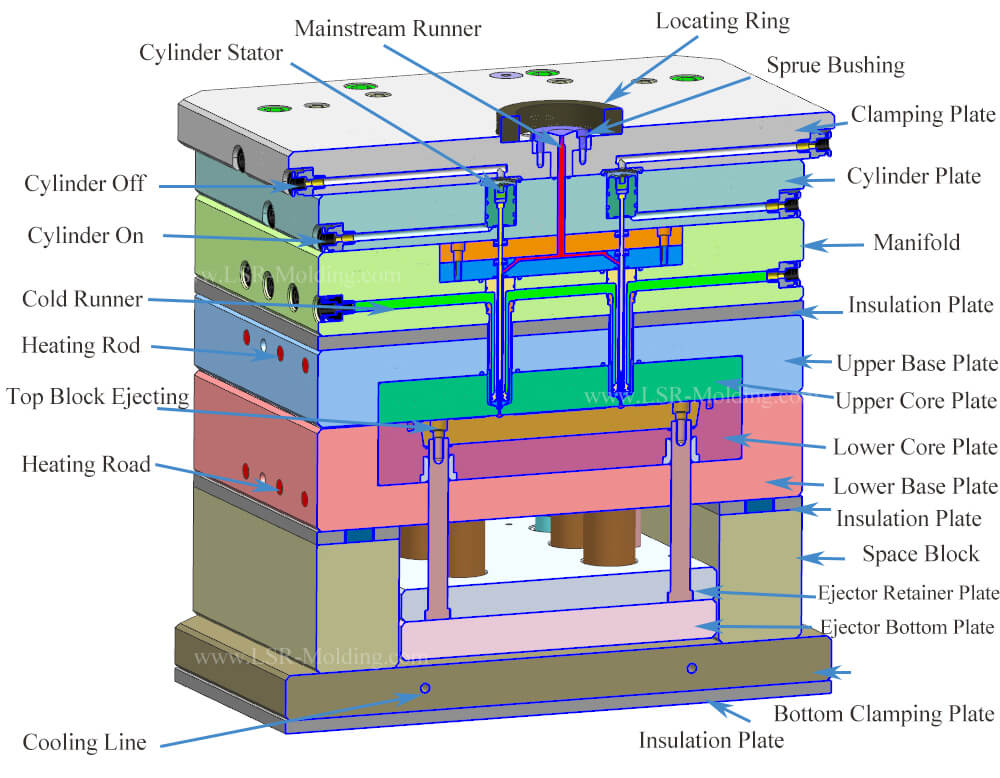

Silicone Injection Mold with Cold Rubber Systems Design Guide


Injection Mold of Liquid Silicone Rubber, don't like compression molded silicone (HTV Silicone or Solid Silicone) materials, which need intersive distributive mixing and also need cold runner systems in aim to maintain liquid silicone rubber & LSR silicon materials at a low temperature before injected into the heat cavities for vulcanization.

Solid silicone (HTV) materials, which is easy to be polluted by workers before compression molded, and also difficult to fully cured & vulcanizated.

Some hazardous substance still stay in solid silicone molded production even secondary vulcanization by oven.

Medical Grade Liquid Silicone Tubing

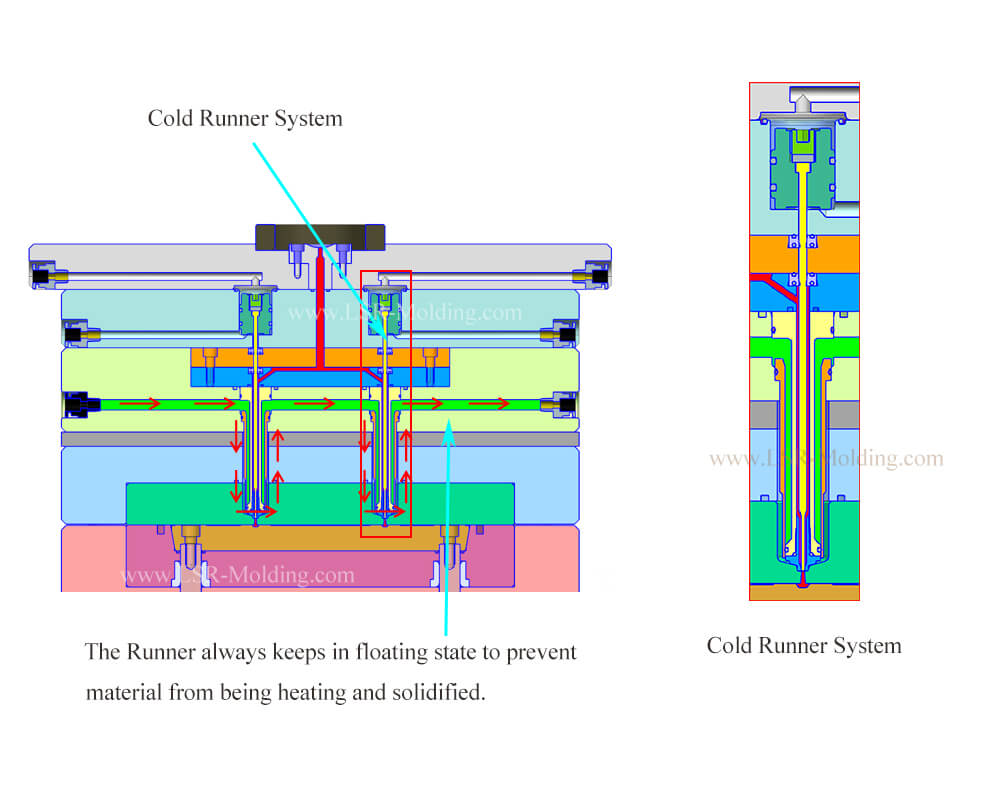

Medical Grade Silicone Injection Molding Design Guide

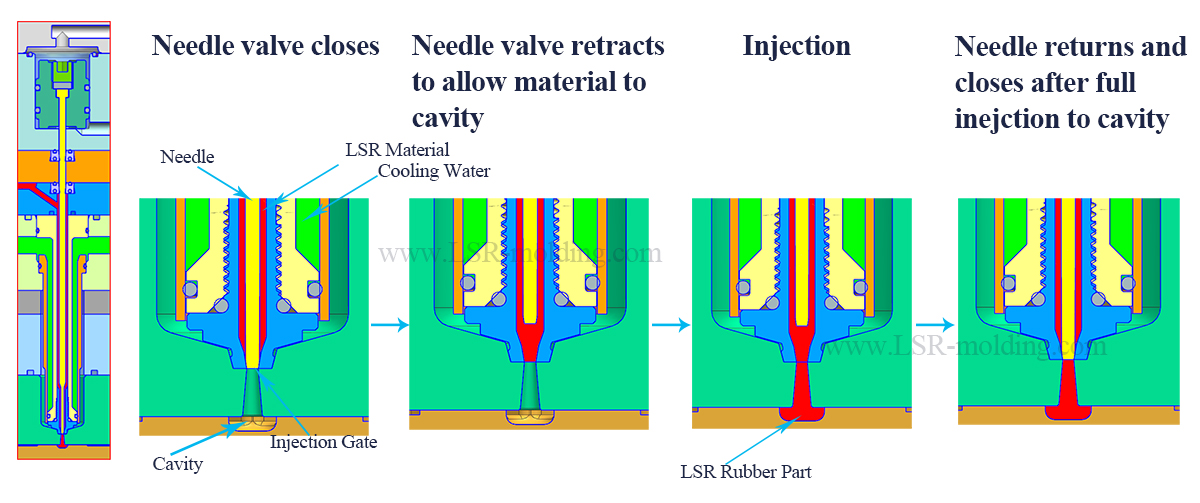

FDA Medical Grade Silicone Mold Design


Injection Molding of Liquid Silicone Rubber, is a two-part platinum-cured silicone, which is a high-purity and non-toxic materials.

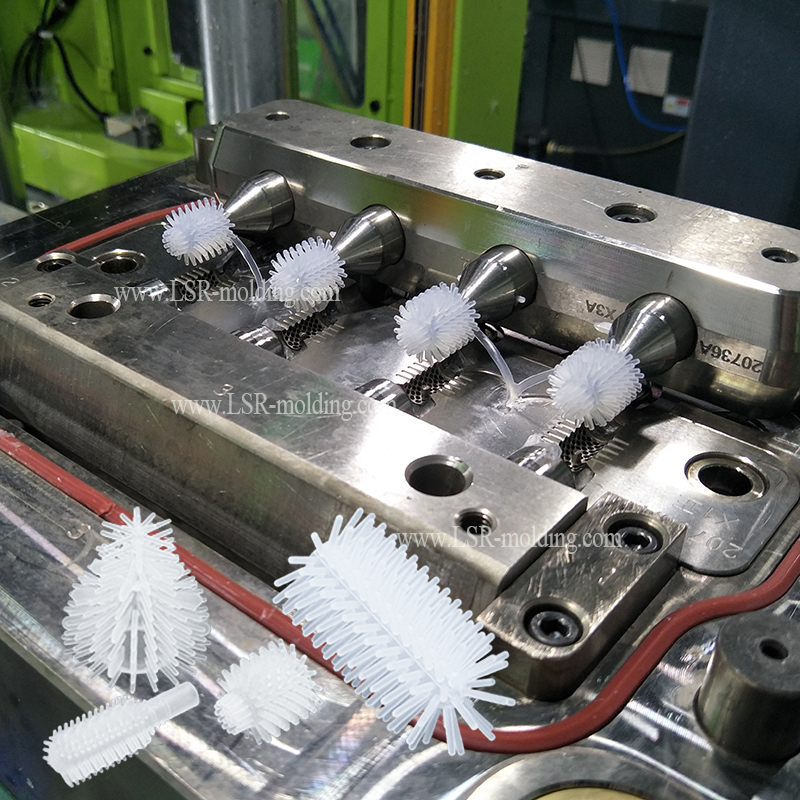

Silicone Injection Mould for Medical Grade Silicon Brushes

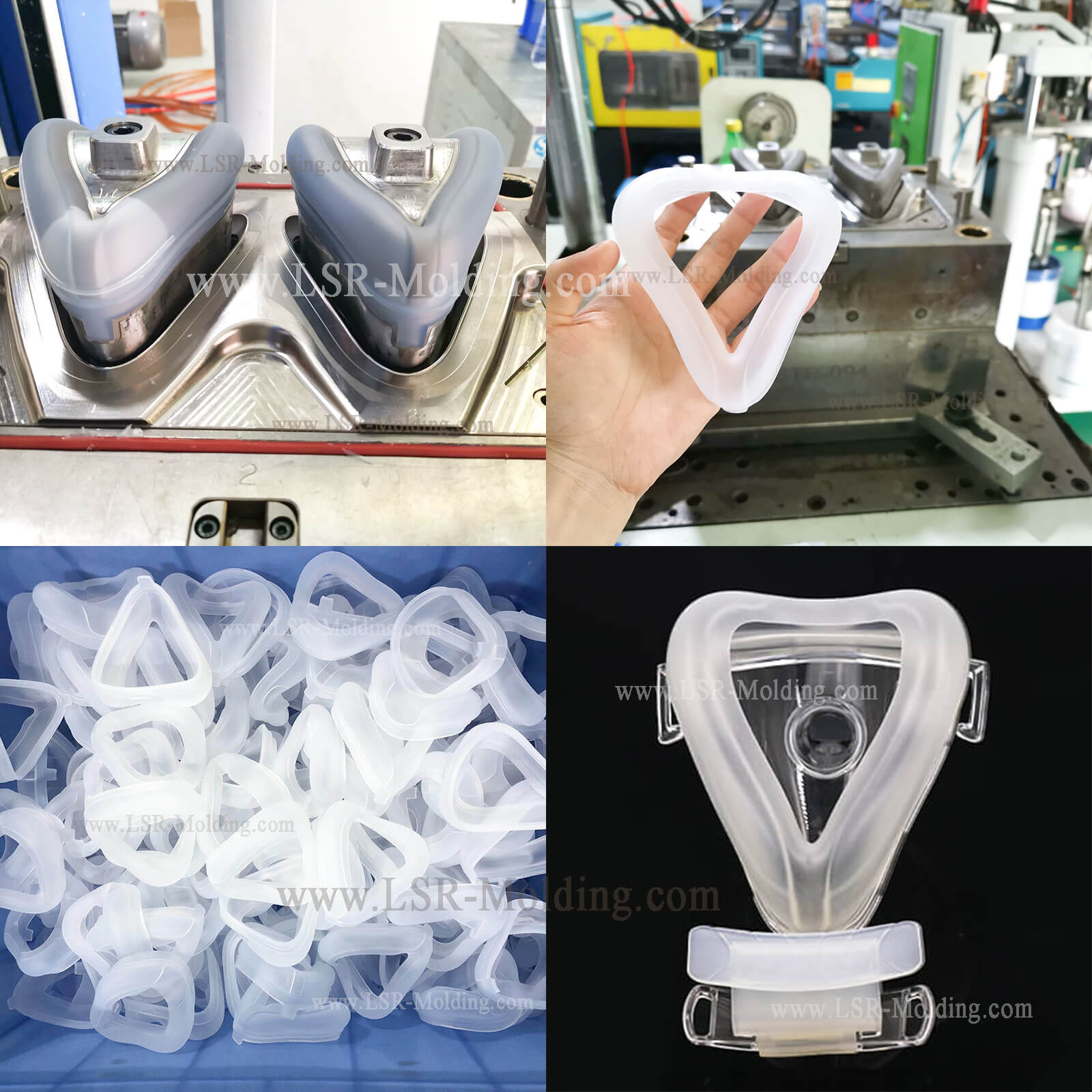

Medical Grade Liquid Silicone Oxygen Resuscitator Face Mask


Silicone Injection Mold with Shut-off Valve & Needle Valve

Silicone Injection Mold with shut-off valve, one is designed to enhance liquid silicon injection molded precision like less or no liquid silicone rubber flashing through control LSR materials dosage when injection molded, the other is aim to achieve automated production


Silicone Injection Molding
